| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

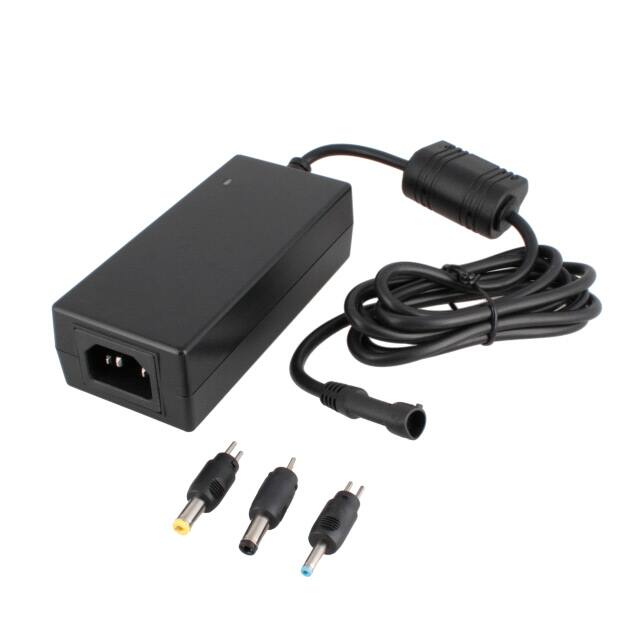

This GlobTek TR9CI2700T00CIMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 24V output at 2.7A, delivering a total of 65W of power.
The unit features a universal input voltage range of 100-240V AC at 50-60Hz, making it suitable for international applications. The input connector is an IEC 60320/C14, and the input cord is sold separately. The output configuration includes a 1.50-meter cord with a T-plug system, offering flexibility with interchangeable plugs (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm included).
Designed for ITE (Commercial) and Medical applications, this power supply meets Efficiency Level VI and CoC Tier 2 standards. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW. The dimensions are 117.5mm x 53.5mm x 34.2mm.
Compliance includes various agency approvals such as CB, CE, cETLus, ETL, FCC, and S-Mark, adhering to standards like 60601-1-11, 60601-1-2, and 62368-1.
The TR9CI2700T00CIMR6B provides an output voltage of 24V at a current of 2.7A.
This AC/DC adapter has a power rating of 65W.
The TR9CI2700T00CIMR6B supports a universal input voltage range of 100-240V AC.
The power supply uses an IEC 60320/C14 input connector.
The dimensions are 117.5mm x 53.5mm x 34.2mm.
The operating temperature range is -20°C to 40°C.
It meets Efficiency Level VI and CoC Tier 2.
