| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

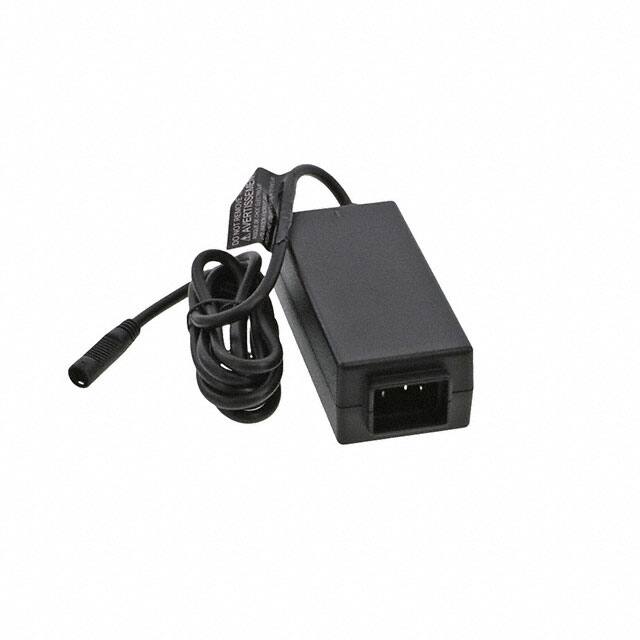

The GlobTek TR9CI1500T00-IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers 36 watts of power with a stable 24V output at 1.5A.
This power adapter operates with a universal input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international applications. It complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. The unit features an IEC 60320/C14 input connector and comes with a T-plug system that includes interchangeable barrel plugs (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm) for versatile output connections.
Designed for applications including Household Appliances, ITE (Commercial), and Medical use, the TR9CI1500T00-IMR6B has an operating temperature range of -10°C to 40°C. Its compact dimensions are 113.3mm x 50.0mm x 35.5mm. The power supply also boasts a low no-load power consumption of 75mW maximum.
Key approvals include CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, indicating broad compliance for various markets. The RoHS and REACH status are listed as compliant and unaffected, respectively, though these are noted as unverified.
The TR9CI1500T00-IMR6B provides an output voltage of 24.0V at 1.5A.
This adapter has a power rating of 36W.
It supports a universal input voltage range of 100-240V AC.
The power supply meets Efficiency Level VI.
The dimensions are 113.3mm in length, 50.0mm in width, and 35.5mm in height.
The operating temperature range is -10°C to 40°C.
It uses an IEC 320-C14 input connector.
