| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

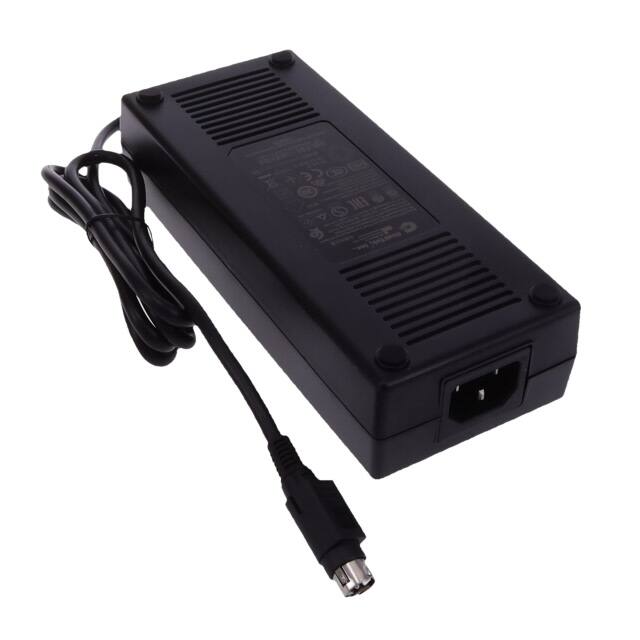

The GlobTek TR9CH9440YL4IMCFR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 18V output at a maximum current of 9.44A, delivering a total power of 170W. This power supply meets USA DOE Level VI and EU Eco-design Directive efficiency requirements, ensuring energy savings.
Featuring an input rating of 100-240V~ at 50-60Hz, it utilizes an IEC 60320/C14 input connector, making it suitable for international use. The output is delivered via a 4-pin locking connector. The unit is housed in a black GlobTek case and has dimensions of 176.0mm x 74.0mm x 40.0mm.
Designed for applications including Medical, ITE (Commercial), and Household use, the TR9CH9440YL4IMCFR6B complies with numerous safety and environmental standards, including cETLus, CB, CE, and RoHS3. The operating temperature range is -10°C to 40°C.
The TR9CH9440YL4IMCFR6B provides an output voltage of 18.0V at a current of 9.44A.
The power rating of the TR9CH9440YL4IMCFR6B is 170 W.
The TR9CH9440YL4IMCFR6B meets Level VI efficiency.
The operating temperature range for the TR9CH9440YL4IMCFR6B is -10°C to 40°C.
The TR9CH9440YL4IMCFR6B uses an IEC 320-C14 input connector.
The dimensions of the TR9CH9440YL4IMCFR6B are 176.0mm L x 74.0mm W x 40.0mm H.
The TR9CH9440YL4IMCFR6B complies with standards including 60335-1, 60601-1, 60950-1, and 62368-1.
