| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

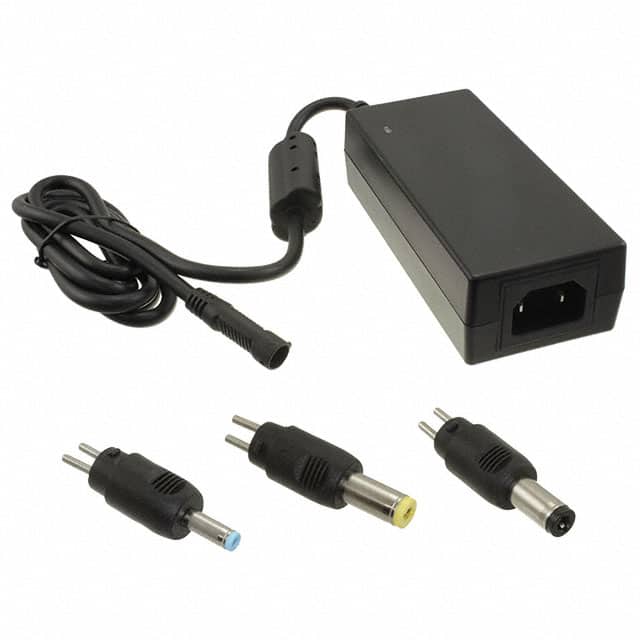

The GlobTek, Inc. TR9CH3333T00CIMR6B is an AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and medical devices. It provides a stable 18V output with a maximum current of 3.33A, delivering a total power of 60W.
This adapter meets the Level VI efficiency standard, ensuring optimal energy consumption. It operates within a wide input voltage range of 90-264 VAC and features an IEC 320-C14 input connector. The output is delivered via a barrel plug kit supporting multiple sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm). The unit is housed in a compact desktop (Class I) form factor with dimensions of 117.5mm x 53.5mm x 34.2mm.
Designed for international use, the TR9CH3333T00CIMR6B complies with numerous safety and performance standards, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. It operates reliably in temperatures ranging from -20°C to 40°C. The adapter is supplied in bulk packaging and is RoHS3 compliant.
The TR9CH3333T00CIMR6B provides an output voltage of 18V and a maximum output current of 3.33A.
The adapter has a power rating of 60W.
The input voltage range is 90 to 264 VAC.
It meets the Level VI efficiency standard.
The operating temperature range is -20°C to 40°C.
It uses an IEC 320-C14 input connector.
The dimensions are 117.5mm x 53.5mm x 34.2mm.
