| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

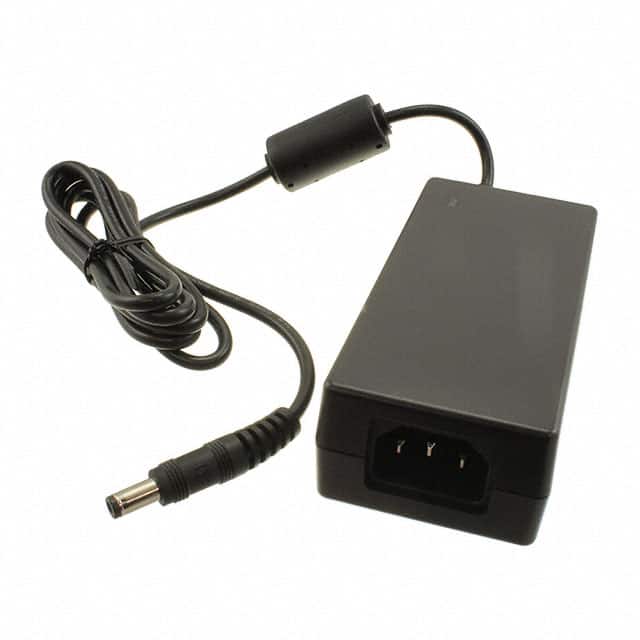

This GlobTek, Inc. TR9CH2222LCP-N(R6B) is an AC/DC external desktop power adapter with a power output of 40W and a voltage of 18V at 2.22A. It features an input voltage range of 90-264 VAC and an efficiency level of VI, suitable for international use.
The adapter utilizes an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. Its dimensions are 111.0mm x 52.0mm x 32.3mm. The operating temperature range is 0°C to 40°C.
Designed for ITE (Commercial) applications, this adapter holds multiple approvals including CE, cULus, EAC, and PSE. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
The input type is a cord, which is sold separately, and the cord length is 1.20m. The adapter has a low no-load power consumption of 75mW (Max).
The TR9CH2222LCP-N(R6B) provides an output voltage of 18V and a maximum output current of 2.22A.
The TR9CH2222LCP-N(R6B) adapter has a power rating of 40W.
The input voltage range for the TR9CH2222LCP-N(R6B) is 90 to 264 VAC.
The TR9CH2222LCP-N(R6B) meets Efficiency Level VI.
The dimensions of the TR9CH2222LCP-N(R6B) are 111.0mm x 52.0mm x 32.3mm.
The operating temperature range for the TR9CH2222LCP-N(R6B) is 0°C to 40°C.
Yes, this part is RoHS3 Compliant.
