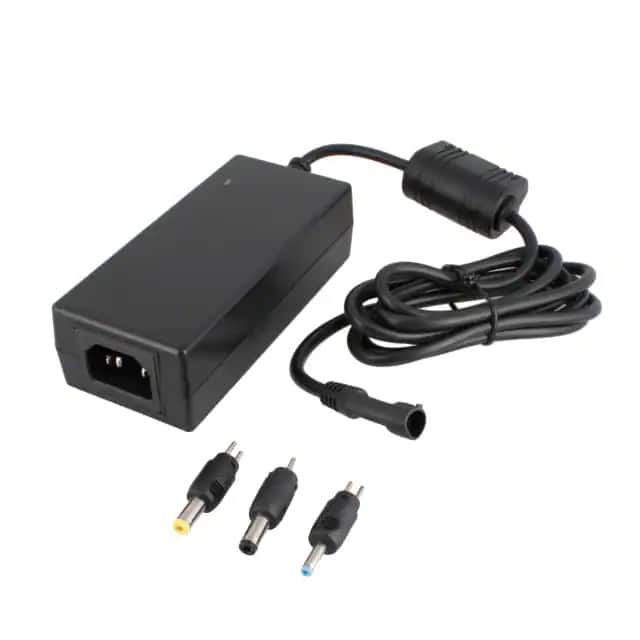

This GlobTek AC/DC power supply, part number TR9CG4330T00IMCFR6B, is designed for desktop or wall mount applications. It operates with a wide input voltage range of 100-240V AC at 50-60Hz, connecting via an IEC 60320/C14 inlet. The adapter provides a stable output of 15V at 4.33A, delivering a total of 65W of power.
Key features include a Level VI efficiency rating and a low no-load power consumption of 150mW maximum. The operating temperature range is -20°C to 40°C. The unit measures 117.5mm x 53.5mm x 34.2mm and comes with a T-plug system output connector kit, including common barrel plug sizes.
This power supply is suitable for various applications, including medical equipment, as indicated by its 60601-1 standard compliance and numerous agency approvals such as CB, CE, cETLus, and others. The input cord is sold separately, allowing for regional customization.
100-240 VAC, 50-60 Hz.
15 V at 4.33 A, 65 W.
-20°C to 40°C.
Level VI, CoC Tier 2.
Barrel plug kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm tips.
150 mW maximum.
Desktop and wall mount (Class I).
