| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

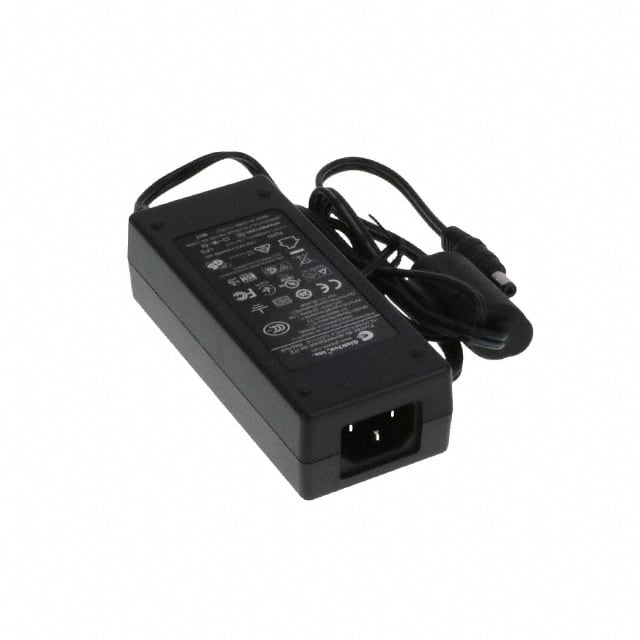

The GlobTek TR9CG4000LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for desktop applications. It delivers a stable 15V output at 4.0A, providing a total of 60W of power.
This power supply meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards. It operates with an input voltage range of 100-240V AC at 50-60 Hz and features an IEC 60320/C14 input connector. The output is delivered via a 1.20m cord with a female barrel connector measuring 5.5mm outer diameter and 2.5mm inner diameter, with a length of 11mm.
Designed for versatility, the TR9CG4000LCP-N(R6B) is suitable for both ITE (Commercial) and Household Appliance applications. It has a compact desktop form factor (Class I) with dimensions of 121.0mm x 52.0mm x 33.0mm. The operating temperature range is 0°C to 40°C. It also includes a ferrite core for noise suppression.
Key approvals include cULus, CE, FCC, and PSE, among others, ensuring compliance with international safety and performance standards. The unit has a low no-load power consumption of 150mW.
The TR9CG4000LCP-N(R6B) provides an output voltage of 15.0V at 4.0A.
The power rating of the TR9CG4000LCP-N(R6B) is 60W.
The TR9CG4000LCP-N(R6B) has an efficiency level of VI.
The operating temperature range for the TR9CG4000LCP-N(R6B) is 0°C to 40°C.
The TR9CG4000LCP-N(R6B) uses an IEC 60320/C14 input connector.
The dimensions of the TR9CG4000LCP-N(R6B) are 121.0mm in length, 52.0mm in width, and 33.0mm in height.
The TR9CG4000LCP-N(R6B) is RoHS3 Compliant.
