| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

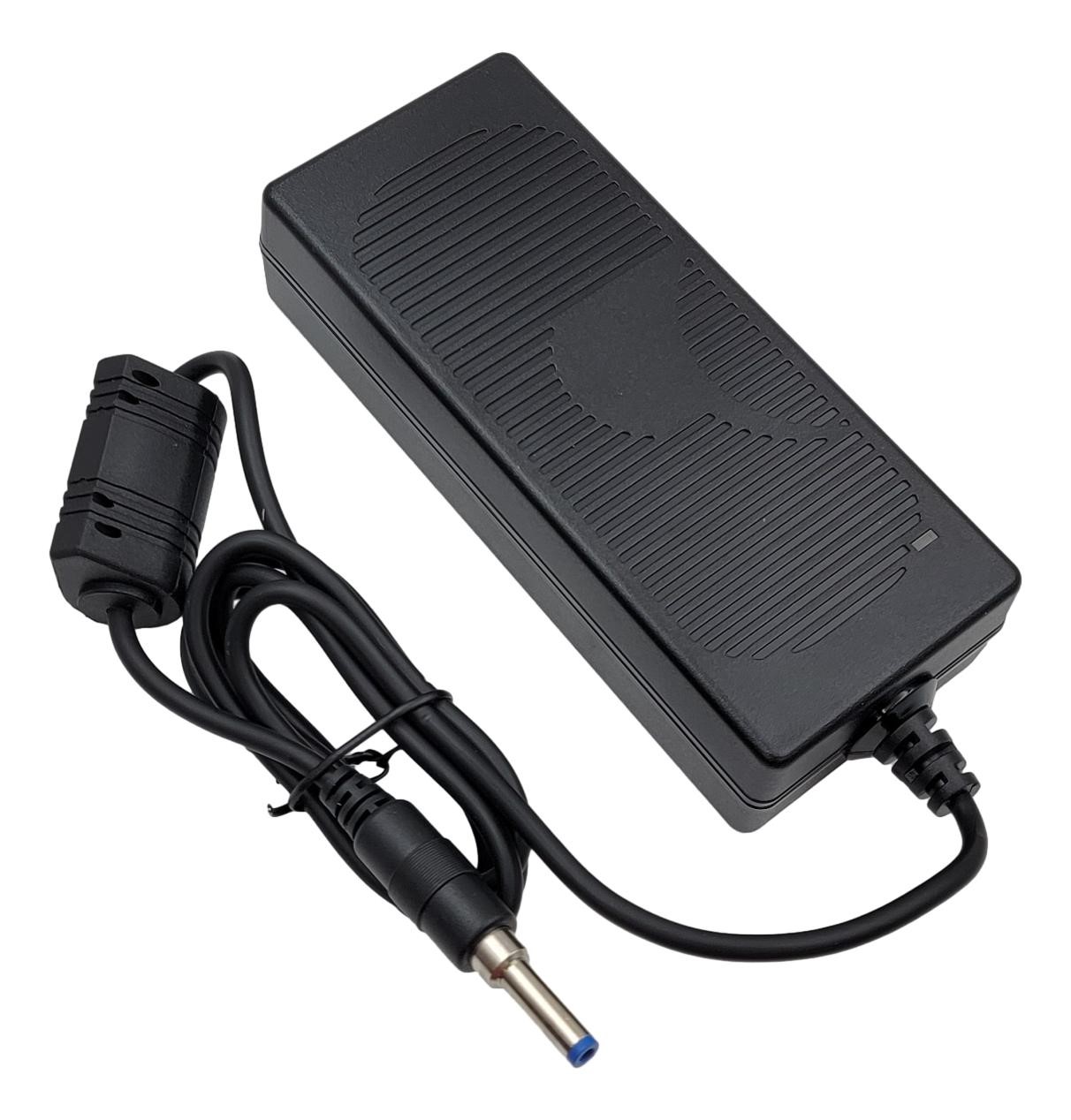

The GlobTek TR9CE9200YL4CIM(R6B) is a versatile AC-DC desktop power supply adapter designed for various applications including household appliances, ITE commercial, and medical equipment. It operates with a universal input voltage range of 100-240V AC at 50-60 Hz, connecting via an IEC 320-C14 input connector.
This adapter delivers a stable 12V DC output at 9.2A, providing a total power of 110.4W. It meets Level VI efficiency standards and features a low no-load power consumption of 150mW maximum. The output is configured with a 4-pin locking Kycon connector and includes a ferrite core for noise suppression.
With a compact desktop form factor (Class I), the unit measures 149.3mm x 62.8mm x 34.0mm. It is designed for an operating temperature range of -10°C to 40°C. The input cord is sold separately, offering flexibility in system integration. The adapter has achieved numerous international approvals, including CB, CCC, CE, cETLus, and S-Mark, ensuring compliance and safety for global use.
100-240 VAC at 50-60 Hz.
12V at 9.2A (110.4W).
-10°C to 40°C.
Level VI, CoC Tier 2.
Compliant with 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61347-1, 62368-1. Approved by BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI.
Desktop (Class I) with IEC 320-C14 input and 4-pin Power DIN output.
149.3mm x 62.8mm x 34.0mm (5.88" x 2.47" x 1.34").
