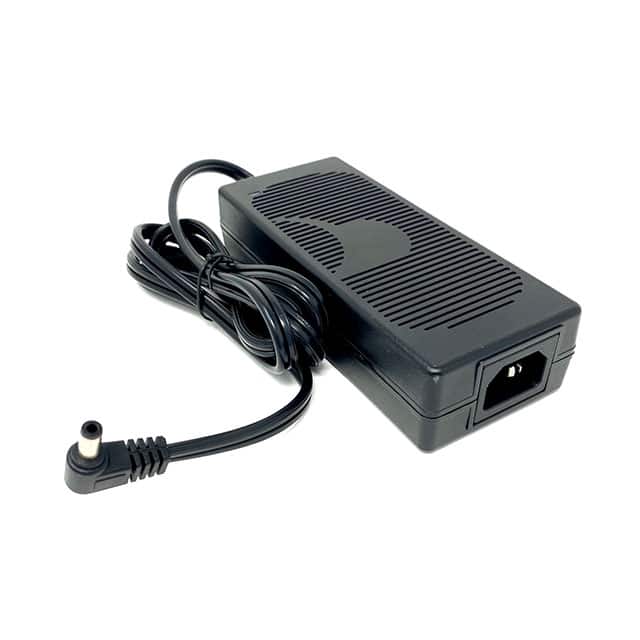

TR9CE7500FILRPNIMR6B The GlobTek, Inc. TR9CE7500FILRPNIMR6B is a 90W AC/DC desktop adapter with a 12V output and 7.5A current. It features an IEC 320-C14 input connector and a barrel plug output.
Mfr Part #:

TR9CE7500FILRPNIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. TR9CE7500FILRPNIMR6B is a 90W AC/DC desktop adapter with a 12V output and 7.5A current. It features an IEC 320-C14 input connector and a barrel plug output.
Stock on Request

TR9CE7500FILRPNIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Lead Style
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

TR9CE7500FILRPNIMR6B Description

Short technical summary and product information.

The GlobTek, Inc. TR9CE7500FILRPNIMR6B is a versatile AC/DC desktop adapter designed for various applications including household appliances, ITE commercial, and medical equipment. It delivers a stable 12V output at 7.5A, providing a total power of 90W.



This adapter features an IEC 320-C14 input connector and a standard barrel plug output with positive center polarization. Its dimensions are 149.4mm in length, 62.8mm in width, and 34.0mm in height. The operating temperature range is from -10°C to 40°C, making it suitable for a wide array of environments.



Compliance with international standards such as 60335-1, 60601-1, 60950-1, and 62368-1 is supported, along with approvals from agencies like CE, cETLus, and RCM, indicating its suitability for international use. The adapter also meets Efficiency Level VI and CoC Tier 1 standards for energy efficiency.

TR9CE7500FILRPNIMR6B Quick Information

Product Type: AC DC Desktop Adapter
Canonical Name: GlobTek, Inc. TR9CE7500FILRPNIMR6B AC/DC Desktop Adapter
Subcategory: AC DC Desktop Adapter

TR9CE7500FILRPNIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR9CE7500FILRPNIMR6B Features

  • 90W AC/DC desktop power adapter.
  • 12V output at 7.5A current.
  • IEC 320-C14 input connector.
  • Barrel plug output, positive center.
  • Operates from -10°C to 40°C.

TR9CE7500FILRPNIMR6B Applications

  • Suitable for household appliances.
  • Ideal for ITE commercial use.
  • Designed for medical equipment.
  • International region utilization.

TR9CE7500FILRPNIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of this adapter?

12V DC.

What is the rated output current?

7.5A.

What is the maximum output power?

90W.

What type of input connection is required?

IEC 320-C14; the power cord is sold separately.

What output connector and polarity does it use?

Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm, with positive center polarity.

What operating temperature range is supported?

-10°C to 40°C.

What efficiency standards does it meet?

Level VI and CoC Tier 1.
