| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

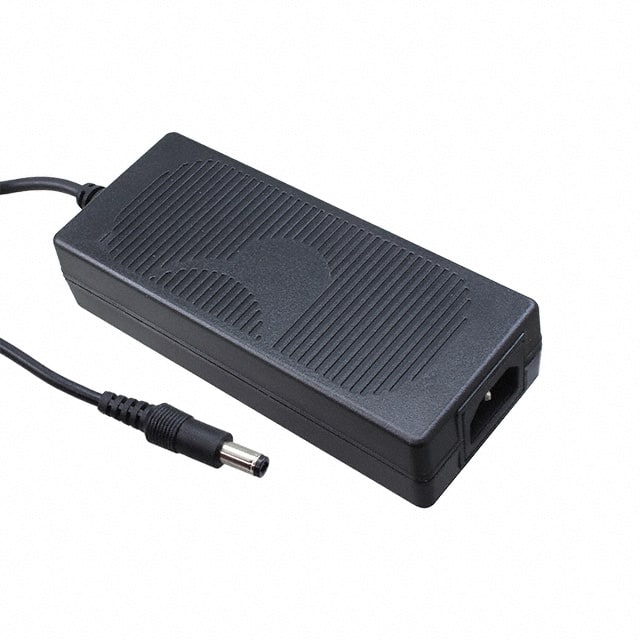

The GlobTek TR9CE7500CCP-IM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It delivers a stable 12V output at 7.5A, providing a total of 90W of power.
This power supply operates with a universal input voltage range of 100-240V AC at 50-60Hz, making it suitable for international applications. It meets USA DOE Level VI and EU Eco-design Directive efficiency standards, ensuring reduced energy consumption.
Key features include an IEC 60320/C14 input connector, a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization, and a cord length of 1.20 meters. The operating temperature range is from 0°C to 50°C. The unit has a low no-load power consumption of 150mW maximum and is housed in a desktop (Class I) form factor.
Approvals include CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, indicating compliance with various international safety and performance standards. It is suitable for applications in household appliances, ITE (Commercial), and Medical fields.
100-240 VAC, 50-60 Hz.
12V DC output at 7.5A.
90W.
Level VI.
0°C to 50°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm, positive center.
150mW maximum.
