| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

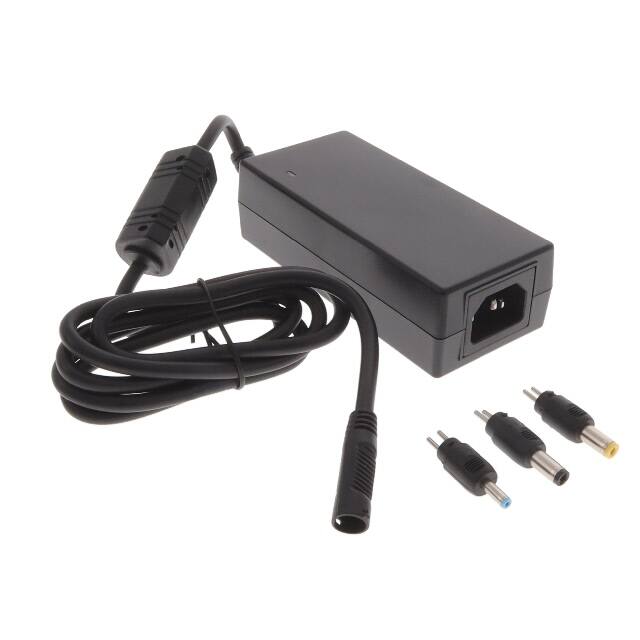

The GlobTek TR9CE5410T00CIMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 12V output at 5.41A, delivering a total of 65W of power.
This power supply meets stringent efficiency requirements, achieving USA DoE Level VI and Eco-Design Directive 2009/125/EC standards. It operates with an input voltage range of 100-240V AC at 50-60Hz and features an IEC 60320/C14 input connector. The output is configurable with a T-plug system, including common barrel plug sizes (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm).
Designed for applications requiring high reliability, the TR9CE5410T00CIMR6B is suitable for ITE (Commercial) and Medical applications. It carries numerous safety and compliance approvals, including CE, ETL, FCC, and cETLus 60601-1. The unit has a compact desktop form factor with dimensions of 117.5mm x 53.5mm x 34.2mm and an operating temperature range of -20°C to 40°C.
The TR9CE5410T00CIMR6B provides a 12V output voltage at 5.41A.
This power supply has an output power rating of 65W.
The TR9CE5410T00CIMR6B meets Level VI efficiency standards.
The operating temperature range for the TR9CE5410T00CIMR6B is -20°C to 40°C.
It uses an IEC 60320/C14 input connector.
The output connector is a barrel plug kit, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plugs.
It complies with standards including 60601-1-11, 60601-1-2, and 62368-1.
