| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

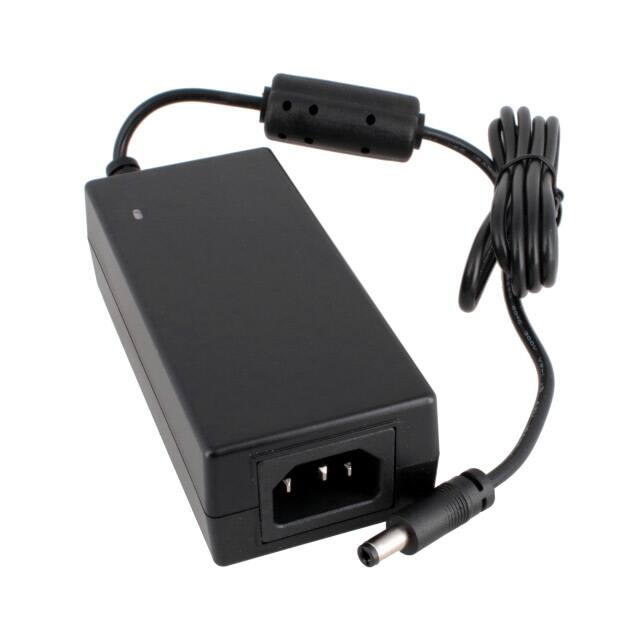

This GlobTek, Inc. TR9CE5410LCPCIMR6B is a versatile AC/DC desktop power adapter designed for commercial and medical applications. It delivers a stable 12V output with a maximum current of 5.41A, providing up to 65W of power.
The adapter features an industry-standard IEC 320-C14 input connector, making it easy to integrate into various systems. Its output is delivered via a barrel plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
Designed for efficiency, this unit meets Level VI and CoC Tier 2 standards, ensuring minimal energy waste. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum. The adapter's dimensions are 117.5mm x 53.5mm x 34.2mm, and it is classified as Desktop (Class I).
Compliance includes standards such as 60601-1-11, 60601-1-2, and 62368-1, with approvals from agencies like CB, CE, cETLus, and FCC. It is RoHS3 compliant and REACH unaffected.
The input voltage range is 100-240 VAC.
The operating temperature range is -20°C to 40°C.
The output voltage is 12V DC.
The output current rating is 5.41A.
The power output is 65W.
It meets Level VI and CoC Tier 2 efficiency standards.
It is approved by CB, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, and UKRSepro, and complies with medical standards 60601-1-11/60601-1-2 and ITE standard 62368-1.
