| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

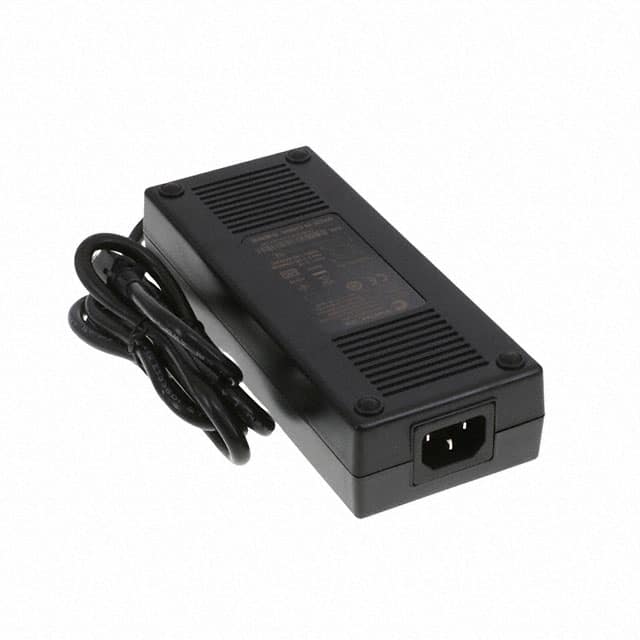

The GlobTek TR9CE5000YL4CIMR6B is a versatile AC/DC desktop power supply designed for various applications including Household Appliances, ITE (Commercial), and Medical equipment. It operates with a wide input voltage range of 100-240V AC at 50-60Hz, making it suitable for international use.
This power supply delivers a stable output of 12V at 5A, providing a total power of 60W. It boasts a Level VI efficiency rating, ensuring reduced energy consumption and heat generation. The unit features an IEC 320-C14 input connector and a 4-pin Power DIN output connector with a cord length of 1.20 meters (47.2 inches).
Designed for desktop use, the TR9CE5000YL4CIMR6B has dimensions of 117.5mm x 53.0mm x 34.0mm. It operates within an ambient temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum. The part number TR9CE5000YL4CIMR6B is also known by the distributor part number 1939-1945-ND.
The TR9CE5000YL4CIMR6B provides an output voltage of 12.0V and an output current of 5.0A.
The TR9CE5000YL4CIMR6B has an output power rating of 60.00W.
The TR9CE5000YL4CIMR6B accepts an input voltage range of 100-240 VAC.
The operating temperature range for the TR9CE5000YL4CIMR6B is -20°C to 40°C.
The TR9CE5000YL4CIMR6B uses an IEC 320-C14 input connector.
The TR9CE5000YL4CIMR6B is RoHS3 Compliant.
