| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

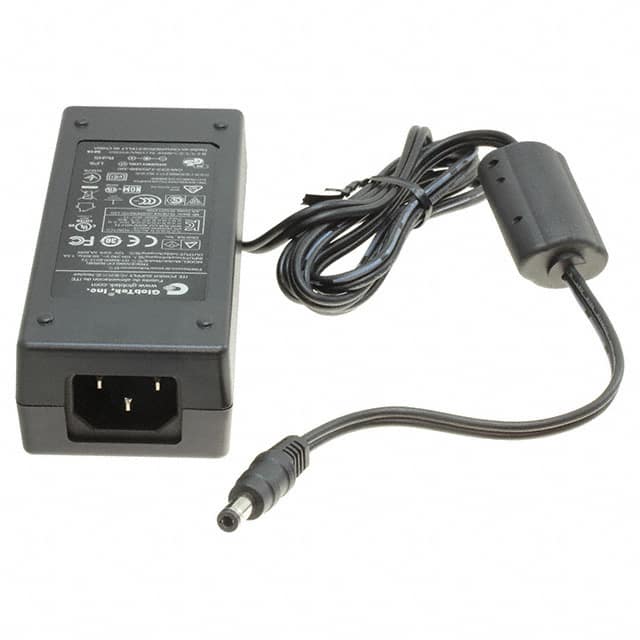

The GlobTek TR9CE5000LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 12V output at 5A, delivering a total of 60W of power.
This power supply meets USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782 efficiency requirements. It features an input rating of 100-240V~ at 50-60 Hz and uses an IEC 60320/C14 input connector. The output is configured with a 1200 mm cord and a female barrel connector measuring 5.5mm outer diameter and 2.5mm inner diameter.
Designed for applications including Household Appliances and ITE (Commercial), the TR9CE5000LCP-N(R6B) operates within a temperature range of 0°C to 40°C. Its dimensions are 121.0mm x 52.0mm x 33.0mm. The unit has a low no-load power consumption of 150mW (Max) and features positive center polarization.
Compliance and safety approvals include CB 60335, CB 60950, cULus, FCC, CE, and more, ensuring suitability for international use. The RoHS status is RoHS3 Compliant, and it is classified as Moisture Sensitivity Level 1.
The TR9CE5000LCP-N(R6B) provides a 12.0V output at 5.0A.
The power rating for this unit is 60W.
The efficiency level is Level VI.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C14 input connector.
The dimensions are 121.0mm in length, 52.0mm in width, and 33.0mm in height.
The RoHS status is RoHS3 Compliant.
