| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

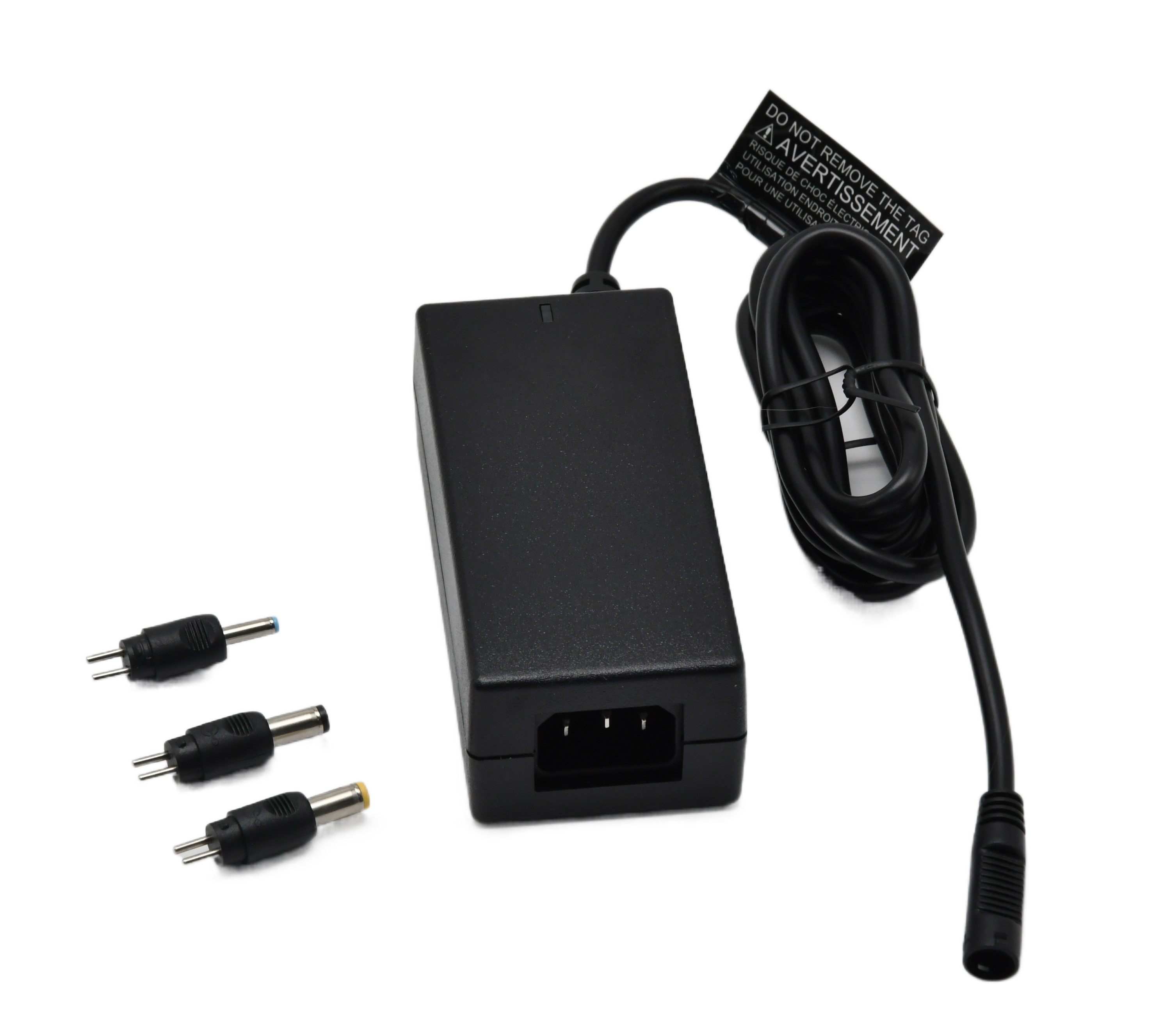

The GlobTek TR9CE3000T00-IMR6B is a versatile 36W AC/DC desktop power supply designed for various applications including household appliances, ITE commercial, and medical use. It operates with an input voltage range of 100-240V~ at 50-60 Hz, connecting via an IEC 320-C14 input.
The adapter provides a stable 12.0V output at 3.0A, delivering a total of 36W. It is designed for efficiency, meeting the Level VI standard, and has a low no-load power consumption of 75mW maximum. The operating temperature range is from -20°C to 40°C.
Mechanical specifications include dimensions of 105.0mm x 50.0mm x 35.0mm, making it a compact desktop unit. The output connector is a flexible barrel plug kit, offering multiple sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm) to accommodate different devices. The integrated cord length is 1.50 meters.
This power supply is compliant with numerous international standards, including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, ensuring broad applicability across different regions. It is also RoHS3 compliant.
The TR9CE3000T00-IMR6B provides an output voltage of 12.0V at 3.0A.
This adapter has a power rating of 36W.
The adapter meets the Level VI efficiency standard.
The dimensions are 105.0mm in length, 50.0mm in width, and 35.0mm in height.
The operating temperature range is -20°C to 40°C.
It uses an IEC 320-C14 input connector.
It comes with a barrel plug kit that includes 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plugs.
