| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

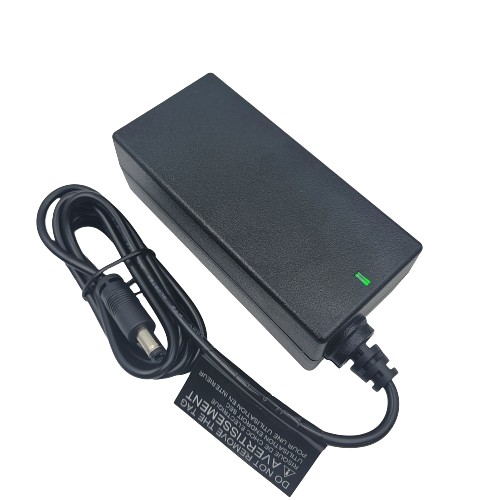

The GlobTek TR9CE3000LCPCIM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 12V output at 3A, delivering a total of 36W of power.
This power adapter features an input rating of 100-240V~ at 50-60 Hz, utilizing an IEC 60320/C14 input connector. It is designed for international use and meets Level VI efficiency standards, as well as CoC Tier 2 requirements. The output is delivered via a 5.5mm x 2.5mm barrel plug with a positive center pin, and the cord length is 1.20 meters.
Applications for this power supply include household appliances, ITE (Commercial), and medical equipment. It operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 75mW maximum. The unit has a compact desktop form factor (Class I) with dimensions of 107.2mm x 50.0mm x 35.5mm.
The TR9CE3000LCPCIM(R6B) has an output voltage of 12V and an output current of 3A.
The power rating of the TR9CE3000LCPCIM(R6B) is 36W.
The TR9CE3000LCPCIM(R6B) supports an input voltage range of 100-240V AC.
The TR9CE3000LCPCIM(R6B) has an efficiency level of Level VI.
The operating temperature range for the TR9CE3000LCPCIM(R6B) is -10°C to 40°C.
The TR9CE3000LCPCIM(R6B) uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The TR9CE3000LCPCIM(R6B) is RoHS3 Compliant.
