| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

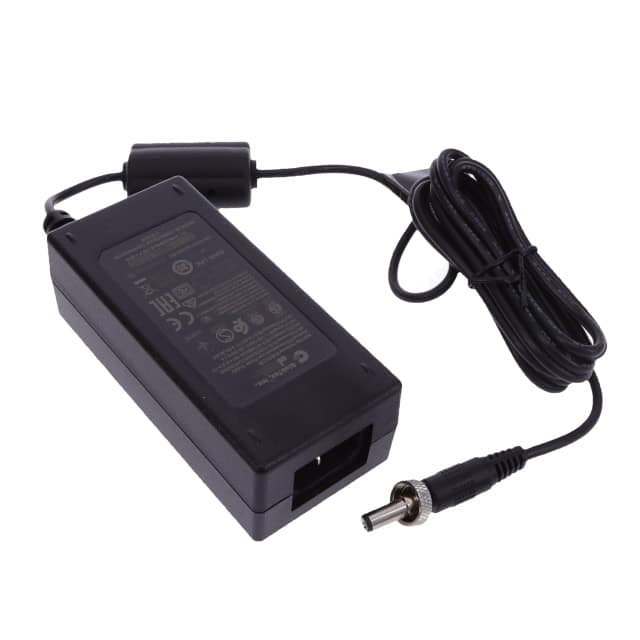

The GlobTek TR9CE3000CLWCIMR6B is a regulated switchmode AC-DC power supply designed for desktop and external use. It provides a 12V output at 3.0A, delivering a total of 36W of power.
This power supply meets Level VI efficiency standards and is suitable for various applications including household appliances, ITE (Commercial), and Medical use. It features an IEC 60320-C14 input connector and a waterproof female barrel output connector (5.5mm x 2.1mm) with a thumbscrew.
The unit operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 75mW. Its dimensions are 113.3mm x 50.0mm x 35.5mm. The input rating is 100-240V~ at 50-60 Hz, making it suitable for international use.
Compliance is certified by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, IEC, LPS, PSE, RCM, S-Mark, UKCA, Ukraine, UL, VCCI, and WEEE. It adheres to safety standards such as 60335-1, 60601-1, 60950-1, and 62368-1.
The TR9CE3000CLWCIMR6B provides an output voltage of 12.0V at 3.0A.
The power rating of the TR9CE3000CLWCIMR6B is 36W.
The TR9CE3000CLWCIMR6B has an efficiency level of VI.
The operating temperature range for the TR9CE3000CLWCIMR6B is -10°C to 40°C.
The TR9CE3000CLWCIMR6B uses an IEC 60320-C14 input connector.
The output connector is a waterproof female barrel measuring 5.5mm outside diameter and 2.1mm inside diameter, with a thumbscrew.
The TR9CE3000CLWCIMR6B complies with safety standards including 60335-1, 60601-1, 60950-1, and 62368-1.
