| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

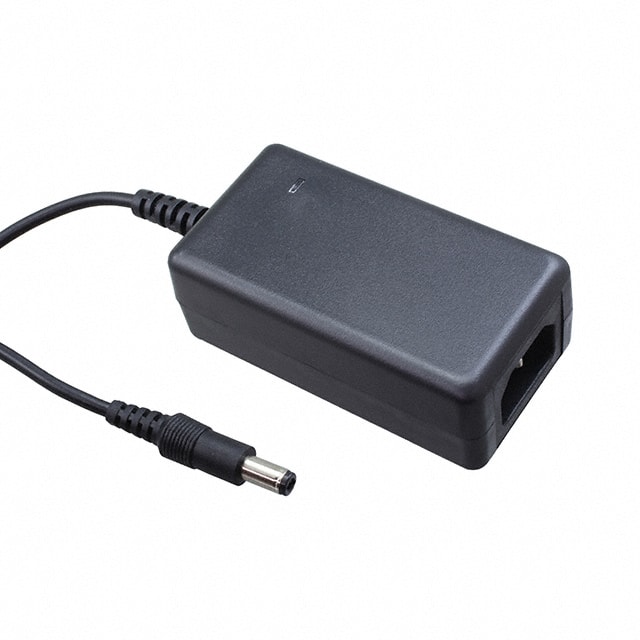

The GlobTek TR9CE1500LCP-IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides an 18W output with a voltage of 12V and a current of 1.5A.
This adapter features a Level VI efficiency rating, ensuring reduced energy consumption. It operates with an input voltage range of 100-240V AC at 50-60 Hz and utilizes an IEC 60320/C14 input connector. The output is delivered via a 5.5mm x 2.5mm barrel plug with a positive center polarization.
Designed for various applications including household appliances, ITE (Commercial), and Medical, the TR9CE1500LCP-IMR6B has a compact desktop form factor with dimensions of 87.0mm x 47.0mm x 32.0mm. It is rated for an operating temperature range of -20°C to 40°C. The input cord is sold separately, and the unit has a cord length of 1.20 meters.
The TR9CE1500LCP-IMR6B provides an output of 12.0V at 1.5A.
The power rating for this adapter is 18 W.
The adapter accepts an input voltage range of 100-240 VAC.
This power supply meets the Level VI efficiency standard.
The dimensions are 87.0mm x 47.0mm x 32.0mm.
The operating temperature range is -20°C to 40°C.
