| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

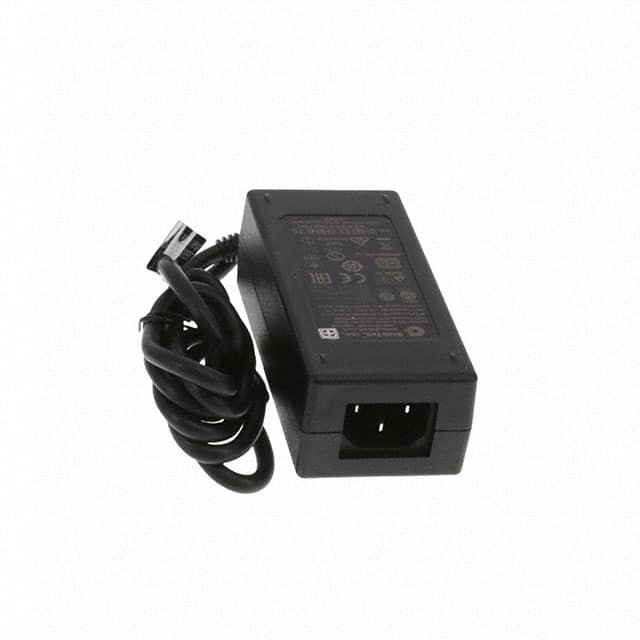

This GlobTek, Inc. TR9CD3333T00IMR6B is an AC/DC desktop adapter designed for various applications. It provides a stable 9V output with a maximum current of 3.33A, delivering a total power of 30W. The adapter operates with an input voltage range of 90-264 VAC and features Level VI efficiency, ensuring optimal energy consumption.
Designed for versatility, it includes multiple output connector options such as 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm barrel plugs. The unit has a compact desktop form factor (Class I) with dimensions of 113.3mm x 50.0mm x 35.5mm. It is suitable for applications in household appliances, ITE (Commercial), and Medical fields. The operating temperature range is -10°C to 40°C.
Compliance is certified by agencies including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. The adapter utilizes an IEC 320-C14 input connector and requires a separate power cord. It also meets RoHS3 compliance and has an MSL rating of 1 Unlimited.
The adapter provides a 9V output at a maximum current of 3.33A.
This adapter has a power rating of 30W.
The adapter meets Level VI efficiency standards, specifically CoC Tier 2.
The adapter can operate within a temperature range of -10°C to 40°C.
The adapter measures 113.3mm in length, 50.0mm in width, and 35.5mm in height.
The adapter uses an IEC 320-C14 input connector.
Output connector options include barrel plug kits for 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
