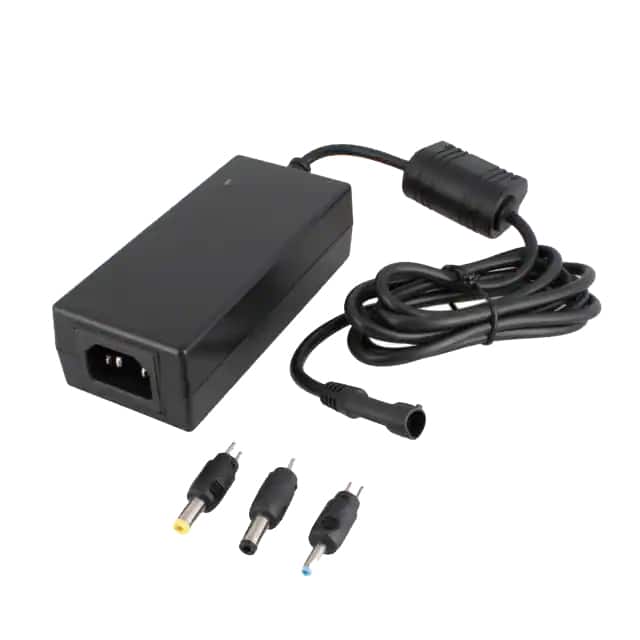

The GlobTek TR9CA8000T00IMCFR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a 5V output at 8A, delivering a total of 40W of power.
This power adapter meets USA DoE Level VI and Eco-Design Directive 2009/125/EC efficiency standards, with potential for Level VII capability under specific conditions. It features an input rating of 100-240V~ at 50-60Hz and utilizes an IEC 60320/C14 input connector. The output configuration includes a T-plug system with multiple interchangeable barrel plugs (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) and a cord length of 1.20 meters.
Designed for versatility, the TR9CA8000T00IMCFR6B is suitable for ICT, ITE, and medical applications, indicated by its numerous approvals including CB, CE, cETLus 60601-1, ETL, FCC, and S-Mark IEC/EN 60601-1. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum.
The unit has a compact desktop/wall mount form factor (Class I) with dimensions of 117.5mm x 53.5mm x 34.2mm. It is designed for international utilization and comes with a medical-grade, locking, polarized output plug system.
The TR9CA8000T00IMCFR6B has an output voltage of 5V and an output current of 8A.
This adapter provides a total power output of 40W.
The TR9CA8000T00IMCFR6B meets USA DoE Level VI and Eco-Design Directive 2009/125/EC efficiency standards.
The operating temperature range for this power supply is -20°C to 40°C.
The TR9CA8000T00IMCFR6B uses an IEC 60320/C14 input connector.
The output connector is a barrel plug kit, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plugs.
Yes, this power supply is approved for medical applications and holds numerous approvals including cETLus 60601-1 and S-Mark IEC/EN 60601-1.
