| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

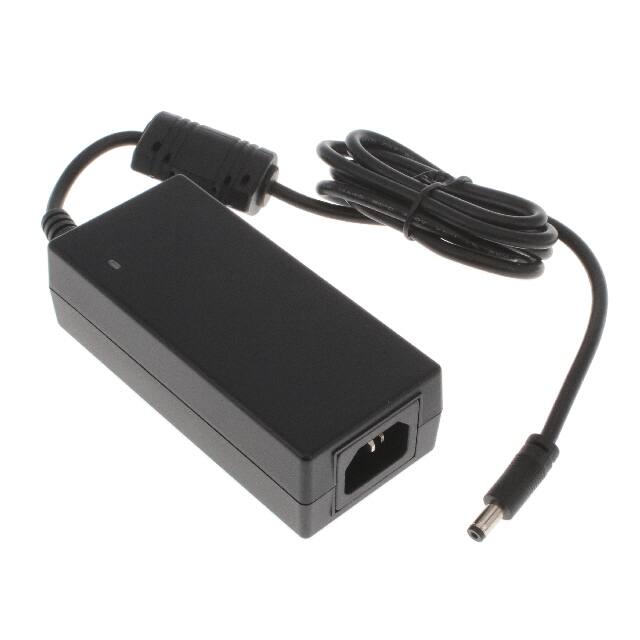

The GlobTek TR9CA8000CCPIM(R6B) is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 5V output at 8A, delivering a total of 40W of power. This adapter is compliant with USA DOE Level VI and EU Eco-design Directive 2009/125/EC, (EU) 2019/1782 efficiency standards, ensuring energy efficiency.
The unit features an IEC 60320/C14 input connector and a standard barrel plug output (5.5mm x 2.1mm x 11mm) with center positive polarization. Its compact dimensions are 117.5mm x 53.5mm x 34.2mm. The operating temperature range is -20°C to 40°C. The power supply also includes a ferrite core and has a low no-load power consumption of 75mW maximum.
This power supply is suitable for various applications including Household Appliances, ITE (Commercial), and Medical devices. It has obtained numerous approvals, including UL, ETL, CE, FCC, and CB certifications, indicating its compliance with international safety and performance standards. The input cord is sold separately.
The input voltage range is 100-240 VAC at 50-60 Hz.
The output is 5V DC at up to 8A, providing 40W of power.
The operating temperature range is -20°C to 40°C.
It meets Level VI efficiency standards with a maximum no-load power consumption of 75mW.
The adapter is a desktop (Class I) unit measuring 117.5mm x 53.5mm x 34.2mm (4.63" x 2.11" x 1.35").
It has a 1.2m output cord terminated with a 2.1mm ID x 5.5mm OD barrel plug with positive center polarity.
The input connector is an IEC 60320/C14.
