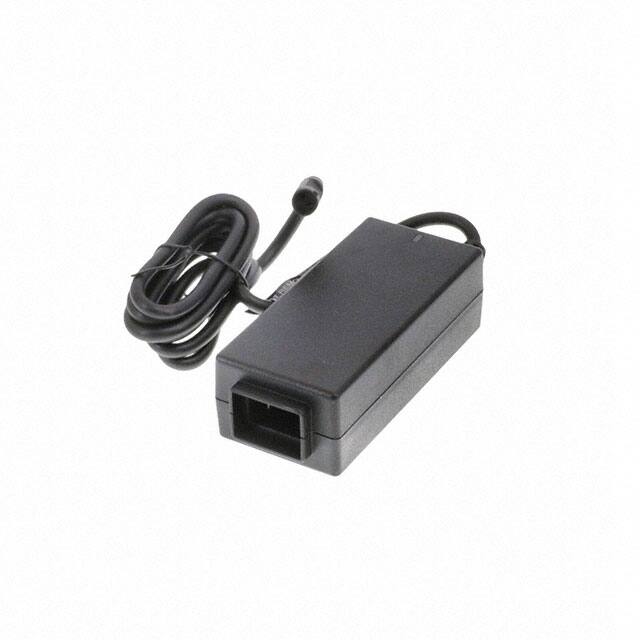

The GlobTek TR9CA4500T00-IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 5V output at 4.5A, delivering a total of 23W of power.
This power supply meets USA DoE Level VI and EU Eco-Design Directive efficiency requirements, ensuring energy savings. It features an input rating of 100-240V~ at 50-60 Hz and utilizes an IEC 60320/C14 input connector. The output configuration includes a 1200 mm cord and a T-plug system with interchangeable 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm plugs.
Designed for versatility, the TR9CA4500T00-IMR6B is suitable for medical, ICT/ITE, and household applications. It operates within a temperature range of -10°C to 40°C and has a no-load power consumption of 75mW maximum. The unit has dimensions of 113.3mm x 50.0mm x 35.5mm and features a negative center polarization.
Key approvals include CCC, CB, CE, ETL, LPS, PSE, RCM, and VCCI, among others, indicating compliance with various international safety and performance standards. The RoHS status is compliant with RoHS3.
The TR9CA4500T00-IMR6B provides an output voltage of 5.0V at 4.5A.
The power rating of the TR9CA4500T00-IMR6B is 23W.
The TR9CA4500T00-IMR6B meets Level VI efficiency standards.
The dimensions of the TR9CA4500T00-IMR6B are 113.3mm x 50.0mm x 35.5mm.
The operating temperature range for the TR9CA4500T00-IMR6B is -10°C to 40°C.
The TR9CA4500T00-IMR6B uses an IEC 320-C14 input connector.
The TR9CA4500T00-IMR6B comes with a T-plug system that includes 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm barrel plugs.
