| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

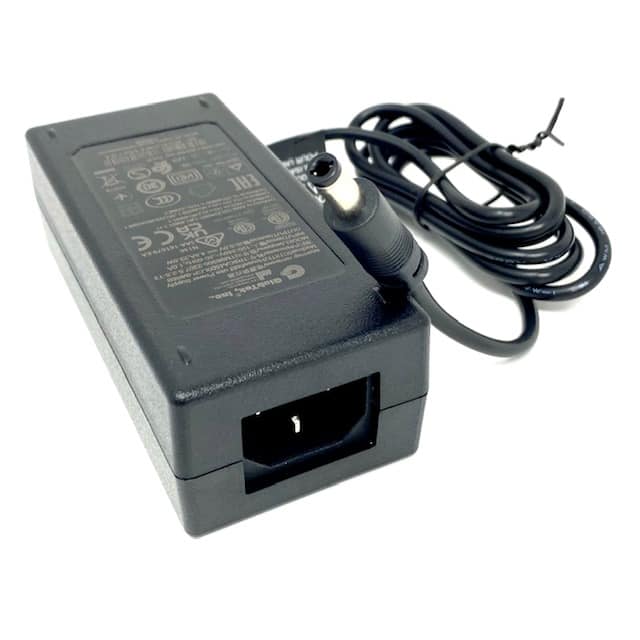

The GlobTek TR9CA4500LCP-IMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. It provides a stable 5V output at 4.5A, delivering a total of 23W of power.
This power supply meets USA DoE Level VI and EU Eco-Design Directive efficiency standards, ensuring energy savings. It features an IEC 60320/C14 input connector and a 5.5mm x 2.5mm barrel plug output with center positive polarization. The operating temperature range is -10°C to 40°C.
With approvals from agencies like CB, CE, ETL, and UKCA, the TR9CA4500LCP-IMR6B is suitable for a wide range of applications including household appliances, commercial ITE, and medical equipment. Its compact desktop form factor (Class I) makes it versatile for various setups.
The TR9CA4500LCP-IMR6B provides a 5.0V output at 4.5A.
The power rating for this unit is 23 W.
The input voltage range is 100-240 VAC.
It meets Level VI efficiency.
The operating temperature range is -10°C to 40°C.
It uses an IEC 60320/C14 input connector.
The output connector is a Female Barrel measuring 5.5mm outside diameter and 2.5mm inside diameter, with a length of 11mm.
