| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

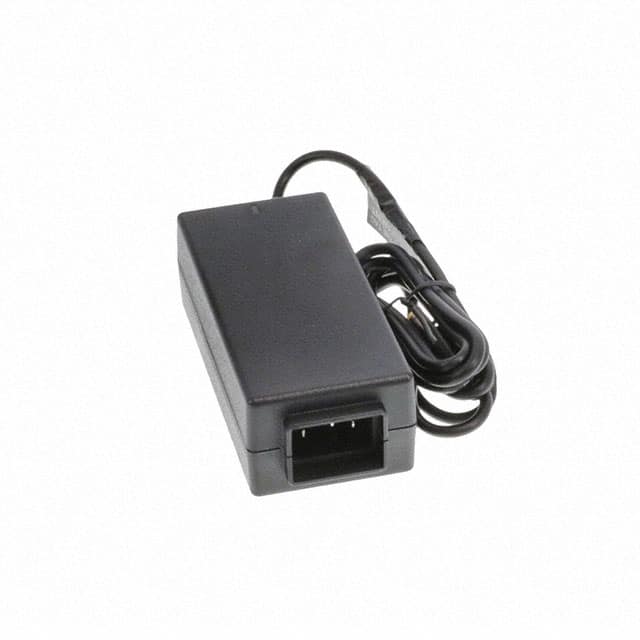

The GlobTek, Inc. TR9CA4500CCP-IMR6B is an AC/DC desktop adapter designed for versatility and efficiency. It delivers a stable 5V output with a maximum current of 4.5A, providing a total power of 23W. This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring optimal energy usage.
Featuring an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm), it is designed for easy integration. The adapter operates within a wide input voltage range of 90-264 VAC and functions reliably in temperatures from -10°C to 40°C. Its compact desktop (Class I) form factor measures 113.3mm x 50.0mm x 35.5mm.
This adapter is approved by multiple agencies including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, making it suitable for international use. Applications include Household Appliances, ITE (Commercial), and Medical devices. The input cord is sold separately, and the unit is packaged in a box.
The TR9CA4500CCP-IMR6B has an output voltage of 5V and a maximum output current of 4.5A.
The adapter has a power rating of 23W.
The input voltage range is 90 to 264 VAC.
It meets Level VI efficiency and CoC Tier 2.
The operating temperature range is -10°C to 40°C.
It uses an IEC 320-C14 input connector.
Approved applications include Household Appliances, ITE (Commercial), and Medical.
