| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

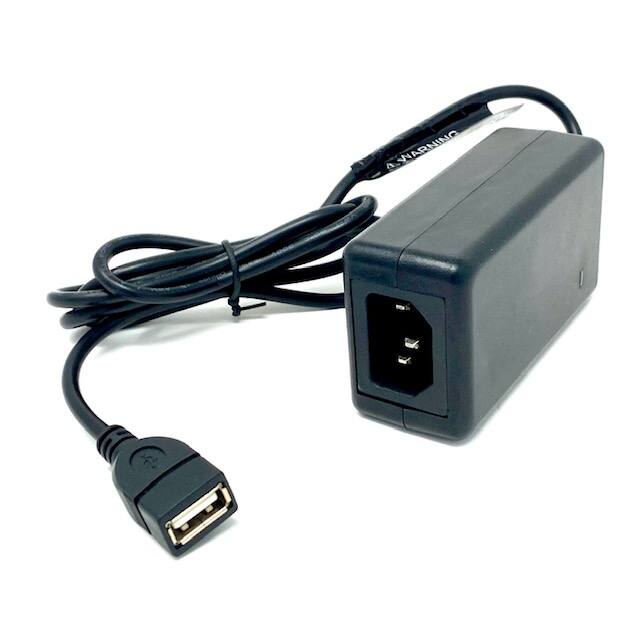

This AC/DC desktop adapter from GlobTek, Inc., part number TR9CA3600USBA-IMR6B, provides 18 watts of power with a 5V output and a maximum current of 3.6A. It is designed for international use, accepting input voltages from 90 to 264 VAC.
The adapter features an IEC 320-C14 input connector and a USB A receptacle for output. It complies with Efficiency Level VI and CoC Tier 1 standards, ensuring energy efficiency. The operating temperature range is -20°C to 40°C.
Key specifications include a compact desktop (Class I) form factor with dimensions of 87.0mm x 46.5mm x 32.0mm. The adapter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Applications include household appliances, ITE (Commercial), and medical devices.
It is approved by numerous agencies including BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. The input type is a cord, sold separately, with an available cord length of 1.00m.
90 to 264 VAC.
5V at up to 3.6A.
18W maximum.
Level VI and CoC Tier 1.
-20°C to 40°C.
Bulk.
USB A Receptacle.
