| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

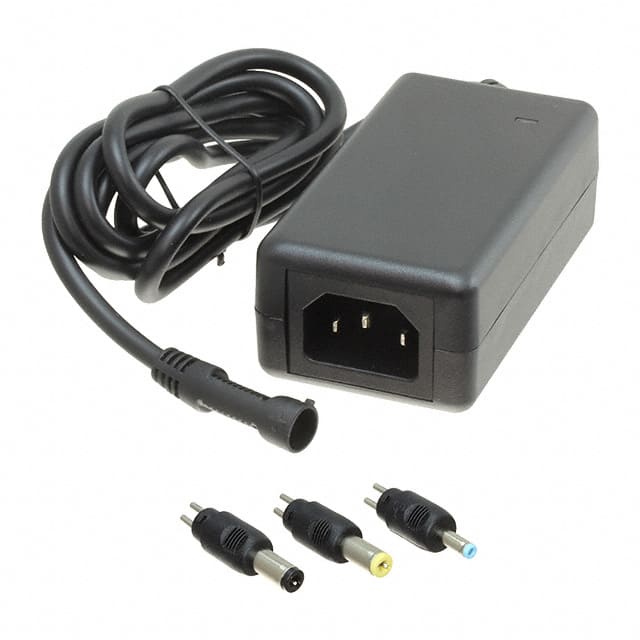

The GlobTek TR9CA3600T00-IMR6B is a regulated switchmode AC-DC desktop power supply adapter. It provides a stable 5.0V output at 3.6A, delivering a total of 18W of power.
Designed for versatility, this adapter meets USA DoE Level VI efficiency standards and is capable of meeting (EU) 2019/1782 and USA DoE Level VII requirements under specific conditions. It features a universal input rating of 100-240V~ at 50-60 Hz, connecting via an IEC 60320/C14 input connector. The output is configurable with a T-plug system, including common medical-grade, locking plugs (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm).
This power supply is suitable for various applications including Household Appliances, ITE (Commercial), and Medical devices. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum. The compact dimensions are 87.0mm x 47.0mm x 32.0mm.
The TR9CA3600T00-IMR6B provides a 5.0V output at 3.6A.
This power supply has a power rating of 18W.
The TR9CA3600T00-IMR6B meets USA DoE Level VI efficiency standards.
The operating temperature range for the TR9CA3600T00-IMR6B is -20°C to 40°C.
The input connector is an IEC 60320/C14.
It features a T-plug system that includes 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm plugs.
This power supply is suitable for Household Appliances, ITE (Commercial), and Medical applications.
