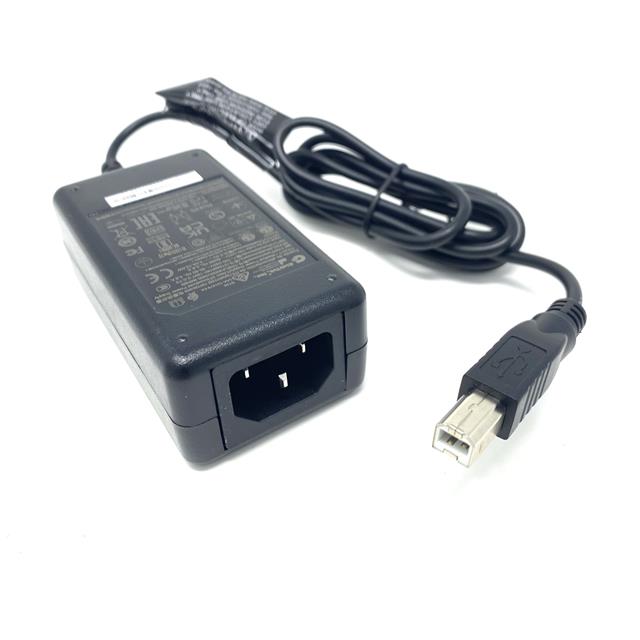

This AC/DC desktop adapter from GlobTek, Inc., part number TR9CA3000USBB-IMR6B, provides a 5V output with a maximum current of 3A, delivering 15W of power. It operates with an input voltage range of 90 to 264 VAC and features an IEC 320-C14 input connector. The adapter is designed for international use and complies with efficiency Level VI and CoC Tier 2 standards.
With a compact desktop (Class I) form factor, its dimensions are 87.0mm x 46.5mm x 32.0mm. The operating temperature range is -20°C to 40°C. Applications include household appliances, ITE (Commercial), and medical devices. The adapter has received numerous agency approvals, including CB, CCC, CE, cULus, and FCC.
The TR9CA3000USBB-IMR6B is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected. The input cord is sold separately and has a length of 47 inches (1.20m).
5V at 3A.
90-264 VAC.
-20°C to 40°C.
Level VI, CoC Tier 2.
87.0mm x 46.5mm x 32.0mm.
CB, CCC, CE, cULus, cETLus, EAC, ETL, FCC, PSE, IRAM, NrCAN, UKCA, Ukraine, VCCI, WEEE.
Household Appliances, ITE (Commercial), Medical.
