| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

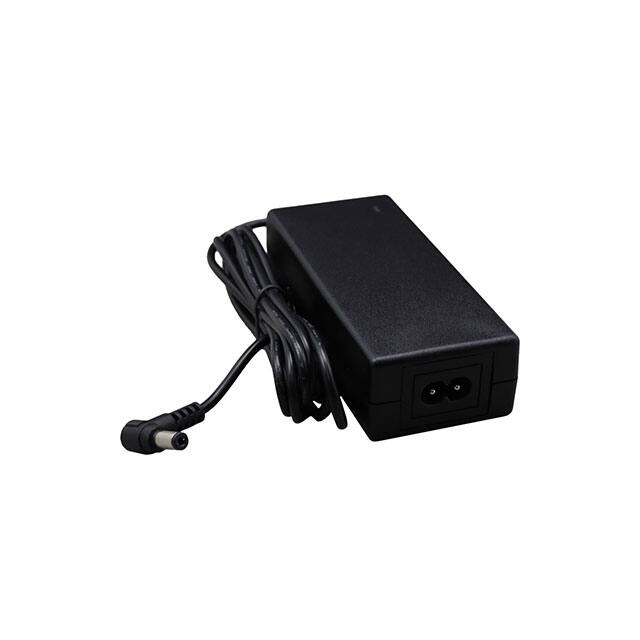

The Cincon TR70MB480-01E03 VI is an AC DC Desktop Adapter designed for various applications, including medical use. It delivers a stable 48V output at a maximum current of 1.5A, providing a total power of 72W.
This adapter features an input connector of IEC 320-C8 and an output connector specified as a Barrel Plug R/A with dimensions 2.1mm I.D. x 5.5mm O.D. x 12.0mm. It operates within a temperature range of -20°C to 70°C and has a low no-load power consumption of 150mW maximum.
The unit is designed in a Desktop (Class II) form factor with Positive Center polarization. It is certified by CE, cURus, FCC, and Nemko, indicating compliance with international safety and performance standards. The adapter is suitable for international utilization.
The TR70MB480-01E03 VI is an AC DC Desktop Adapter from Cincon.
This adapter provides a 48V output at 1.5A, delivering 72W of power and meeting Level VI efficiency standards.
The TR70MB480-01E03 VI operates within a temperature range of -20°C to 70°C.
It features an IEC 320-C8 input connector and a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm output connector.
The RoHS status is RoHS3 Compliant.
The REACH status is REACH Unaffected.
The MSL is 1 Unlimited.
