| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

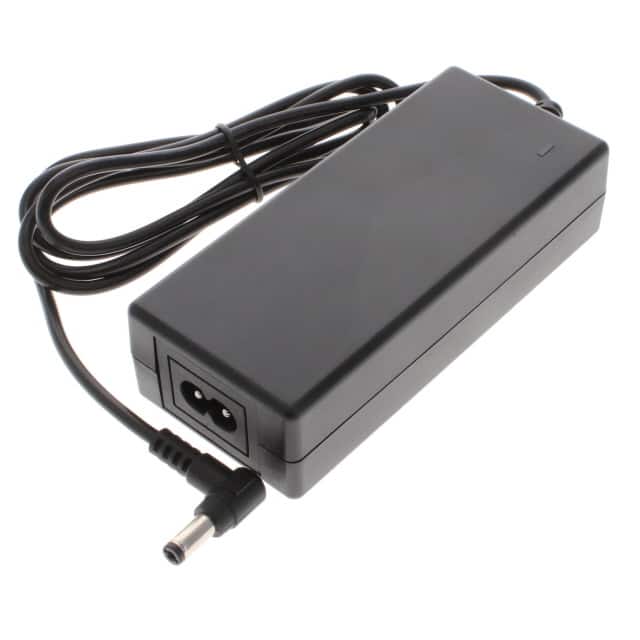

The Cincon TR70MB120-01E02 VI is a versatile 70W AC/DC desktop adapter designed for international use. It provides a stable 12V output at 5.8A, making it suitable for a variety of applications, including medical devices.
This adapter features a compact desktop form factor (Class II) with dimensions of 120.0mm x 52.0mm x 31.0mm. It connects via an IEC 320-C8 input and utilizes a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. The input type is a cord, sold separately, with an available cord length of 48 inches (1.22m).
Designed for efficiency, the TR70MB120-01E02 VI meets Level VI energy standards and CoC Tier 2 requirements, with a low no-load power consumption of 150mW maximum. It operates within a temperature range of -20°C to 70°C.
Compliance is indicated by approval agencies including CE, cURus, FCC, and Nemko. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The adapter provides a 12V output voltage and 5.8A output current.
The power rating is 70W.
The operating temperature range is -20°C to 70°C.
It uses an IEC 320-C8 input connector.
The dimensions are 120.0mm in length, 52.0mm in width, and 31.0mm in height.
Yes, it meets Level VI efficiency and CoC Tier 2 standards.
Yes, it is listed for medical applications.
