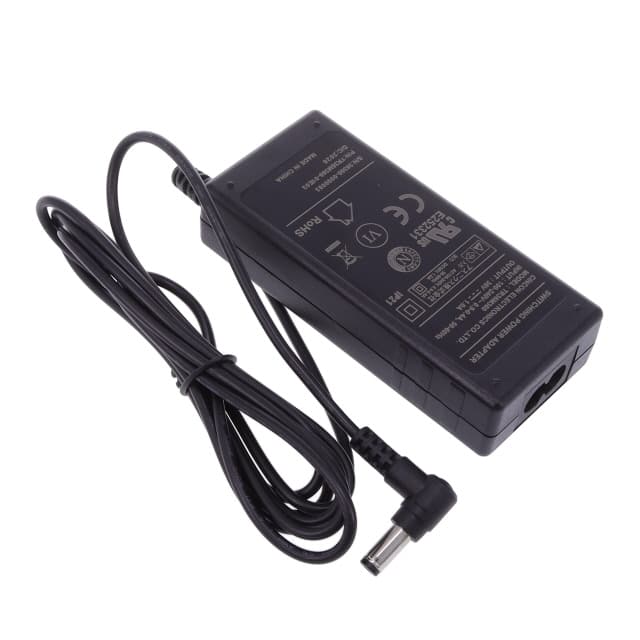

TR36M360-01E03 VI The Cincon Electronics TR36M360-01E03 VI is a 36W AC/DC desktop adapter providing 36V at 1A. It features a Level VI efficiency rating and a compact desktop form factor.
Mfr Part #:

TR36M360-01E03 VI

Mfr Name: Cincon Electronics Co. LTD
Cincon Electronics Co. LTD
The Cincon Electronics TR36M360-01E03 VI is a 36W AC/DC desktop adapter providing 36V at 1A. It features a Level VI efficiency rating and a compact desktop form factor.
Stock on Request

TR36M360-01E03 VI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width

TR36M360-01E03 VI Description

Short technical summary and product information.

The Cincon Electronics TR36M360-01E03 VI is an AC/DC desktop adapter designed for various applications, including household appliances and medical equipment. It delivers a stable 36V output at 1A, providing a total power of 36W.



This adapter meets Level VI energy efficiency standards and CoC Tier 2 requirements, ensuring reduced energy consumption. It features an IEC 320-C8 input connector and a barrel plug output with positive center polarization. The operating temperature range is from -30°C to 60°C, making it suitable for diverse environmental conditions.



With dimensions of 100.0mm x 45.0mm x 22.5mm, it offers a compact desktop form factor (Class II). The adapter is designed for international use and complies with safety standards such as 60335-1 and 60601-1, with approvals from CE, cURus, FCC, NEMKO, and PSE.



It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. The no-load power consumption is a maximum of 75mW.

TR36M360-01E03 VI Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: Cincon Electronics Co. LTD TR36M360-01E03 VI AC/DC Desktop Adapter
Subcategory: AC DC Desktop, Wall Adapters

TR36M360-01E03 VI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR36M360-01E03 VI Features

  • 36W AC/DC desktop adapter with 36V/1A output.
  • Meets Level VI and CoC Tier 2 efficiency standards.
  • IEC 320-C8 input and 2.1mm x 5.5mm barrel plug output.
  • Wide -30°C to 60°C operating temperature range.
  • Approved by CE, cURus, FCC, NEMKO, and PSE.

TR36M360-01E03 VI Applications

  • Suitable for household appliances.
  • Designed for medical equipment applications.
  • Ideal for international power needs.
  • Compact desktop form factor for easy integration.

TR36M360-01E03 VI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

100-240 VAC.

What is the operating temperature range?

-30°C to 60°C.

What is the form factor or package type?

Desktop (Class II) adapter.

What output voltage and current does this adapter provide?

36V DC at 1A (36W).

What output connector type is used?

Barrel plug, right angle, 2.1mm I.D. x 5.5mm O.D. x 12.0mm length.

What efficiency standard does this adapter meet?

Level VI and CoC Tier 2.

What safety approvals does the adapter have?

CE, cURus, FCC, NEMKO, PSE.
