| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

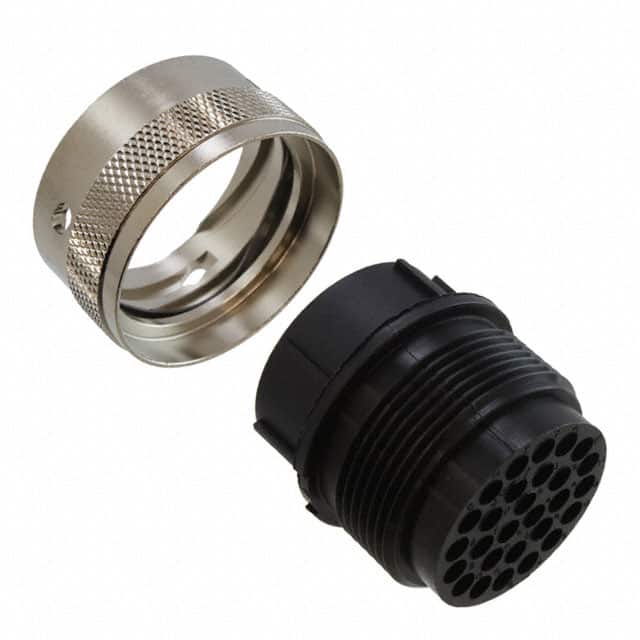

The TR2028PFS1NB is a 28-position circular connector plug housing manufactured by ITT Cannon, part of the Trident series. It is designed for use with female socket contacts and features a free hanging (in-line) mounting style. The housing has a shell size designation of 20-28 and is keyed for proper orientation.
The connector housing is constructed from black polyamide (PA), nylon material with a UL94 V-0 flammability rating, ensuring suitability for applications requiring fire resistance. It employs a detent lock fastening mechanism and includes a coupling nut for secure mating. The contact type supported is crimp and solder cup, compatible with standard Trident contacts.
This unshielded plug housing is intended for general-purpose circular connector applications where a reliable and durable interconnect is needed. The Trident series is known for its simple installation and ability to handle harsh environments, though specific environmental ratings for this part are not confirmed. The housing is offered in a bulk package and supports the use of hand insertable contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.91 | $19.91 |
| 10+ | $16.92 | $16.92 |
| 25+ | $15.86 | $15.86 |
| 50+ | $15.37 | $15.37 |
| 100+ | $14.36 | $14.36 |
| 250+ | $13.79 | $13.79 |
| 500+ | $12.79 | $12.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TR2028PFS1NB has 28 positions.
It supports free hanging (in-line) mounting.
The shell size is 20-28.
The housing accepts crimp and solder cup contacts.
It uses a detent lock fastening mechanism.
The housing is made of polyamide (PA), nylon and has a UL94 V-0 flammability rating.
The housing is unshielded and includes a coupling nut as a feature.
