| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,060 pcs
|
1060 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Insulation Resistance | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

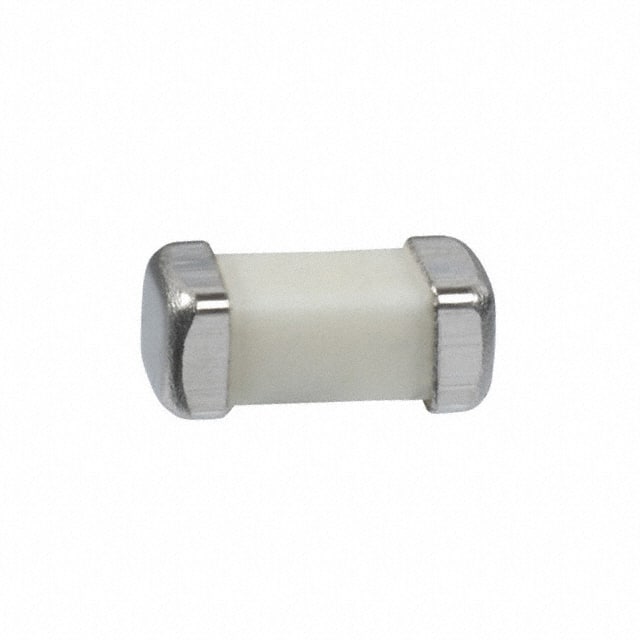

This TR2/6125FA10A fuse from Eaton Electronics Division is designed for overcurrent protection in systems up to 125VAC/DC. It is a fast-acting, surface mountable component with a 10A current rating and a voltage rating of 125V AC and 86V DC.
The fuse offers a breaking capacity of 50A AC and 10kA DC, with a melting I²t of 44 A²s. Its compact dimensions of 6.10mm x 2.59mm x 2.59mm make it suitable for space-constrained applications. The component is compatible with standard surface mount assembly processes, including wave soldering and infrared reflow.
Compliance includes UL and CSA agency approvals. The fuse is designed to meet stringent environmental standards, including resistance to shock, vibration, and thermal shock as per MIL-STD-202 methods. It is also solder immersion compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A.
125 VAC and 86 VDC.
50 A AC and 10 kA DC.
Fast Blow.
2-SMD, Square End Block.
44 A²s.
MIL-STD-202 tests for shock (100 G's), vibration (10-55 Hz, 0.06 inch), salt spray (48 hrs), thermal shock (-65°C to +125°C), and insulation resistance (10,000 ohms min after opening).
