| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,339 pcs
|
1339 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Pin Diameter | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

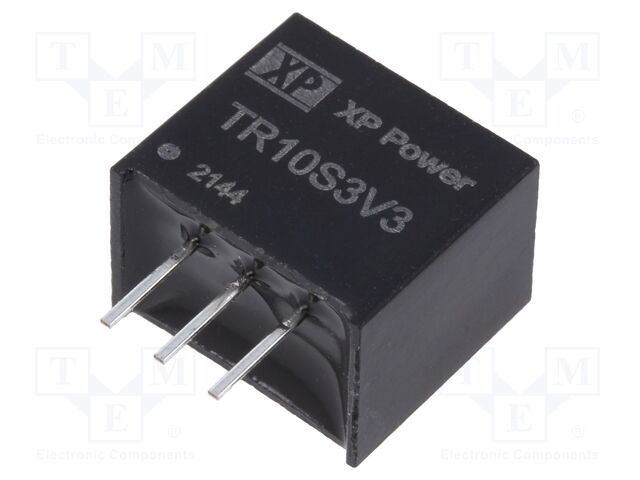

The XP Power TR10S3V3 is a switching regulator designed as a linear regulator replacement, providing a regulated 3.3V output at up to 1A from a wide 7V to 28V DC input. This non-isolated converter utilizes a 330 kHz switching frequency to achieve high efficiency, up to 89% at minimum input voltage, reducing power dissipation. It features short circuit protection with continuous auto-recovery and requires a minimum load of 100 mA to meet specifications, though operation at no load will not cause damage.
Housed in a compact 3-SIP through-hole module measuring just 11.68 x 7.5 x 10.16 mm, the TR10S3V3 offers a low-profile solution for space-constrained applications. The case is made of non-conductive black plastic rated UL94V-0, and the pin material is solder coated C5191R-H. With an operating temperature range of -40°C to +85°C, it is suitable for commercial ITE environments. Key electrical characteristics include line regulation of 1.0%, load regulation of 1.5%, and ripple and noise of 100 mV pk-pk. The MTBF is rated at 3.8 million hours per MIL-HDBK-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.57 | $3.57 |
| 5+ | $3.46 | $3.46 |
| 10+ | $3.36 | $3.36 |
| 25+ | $3.21 | $3.21 |
| 120+ | $3.16 | $3.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 3.3 V.
The input voltage range is 7 V to 28 V.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant (unverified).
It comes in a 3-SIP Module through-hole package.
Efficiency is 89% at 7V input (full load) and 82% at 28V input (full load).
Yes, it features continuous short circuit protection with auto recovery.
