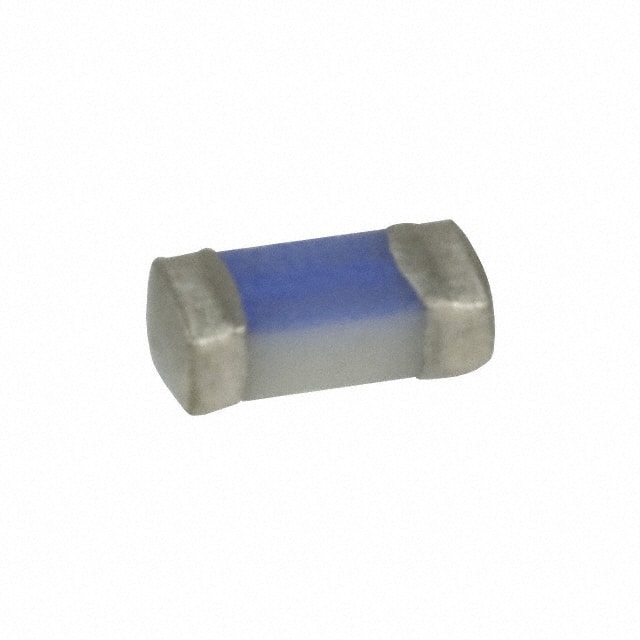

TR/0603FA2-R Board mount fast blow SMD fuse rated 2A at 32VAC/VDC with 35A interrupting capacity. Packaged in an 0603 (1608 metric) footprint.
Mfr Part #:

TR/0603FA2-R

Available from 5 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Board mount fast blow SMD fuse rated 2A at 32VAC/VDC with 35A interrupting capacity. Packaged in an 0603 (1608 metric) footprint.
✓ Total Stock: 10,609 pcs
$ Price Range: $0.55 - $0.70

TR/0603FA2-R Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TR/0603FA2-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating (Amps)
Fuse Type
Height
Length
Melting I²t
Mounting Type
Operating Temperature
Response Time
Tape & Reel
Voltage Rating
Width
View Similar Products (0)

TR/0603FA2-R Description

Short technical summary and product information.

The Eaton TR/0603FA2-R is a fast blow surface mount fuse designed for overcurrent protection in compact electronic circuits. It is rated for 2 amperes continuous current at 32 volts AC or DC and offers a breaking capacity of 35 amperes at the rated voltage.



With a melting I²t value of 0.0491 A²s, this fuse provides fast response to overcurrent conditions while maintaining predictable time-current characteristics. The operating temperature range spans -55°C to +125°C, making it suitable for a wide variety of environments.



The component is housed in a standard 0603 (1608 metric) package with a low profile of 0.48mm height, enabling use in space-constrained PCB layouts. It is approved by CSA and UL and is compliant with RoHS3, REACH, and MSL Level 1 requirements.

TR/0603FA2-R Quick Information

Product Type: Surface Mount Fuse
Canonical Name: Eaton TR/0603FA2-R Fast Blow SMD Fuse, 2A, 32V, 0603 Package
Subcategory: Fast Blow SMD Fuse

TR/0603FA2-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TR/0603FA2-R Estimated Pricing

Qty Low High
1+ $0.70 $0.70
10+ $0.64 $0.64
50+ $0.55 $0.55
5,000+ $0.55 $0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

TR/0603FA2-R Features

  • Fast blow response for overcurrent protection.
  • Rated 2A continuous current at 32V.
  • 35A breaking capacity at rated voltage.
  • Compact 0603 surface mount package.
  • CSA and UL approved safety ratings.

TR/0603FA2-R Applications

  • Overcurrent protection in portable electronics.
  • Power management circuits for consumer devices.
  • Protection of DC-DC converter input stages.
  • Safety isolation in battery management systems.
  • Board-level protection in telecom equipment.

TR/0603FA2-R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the TR/0603FA2-R fuse?

The TR/0603FA2-R has a current rating of 2 A.

What voltage rating does this fuse have?

It is rated for 32 V AC or DC.

What is the breaking capacity of the TR/0603FA2-R?

The breaking capacity is 35 A at the rated voltage.

Is the TR/0603FA2-R a fast blow or slow blow fuse?

It is a fast blow fuse.

What package size is the TR/0603FA2-R?

The fuse comes in an 0603 (1608 metric) surface mount package.
