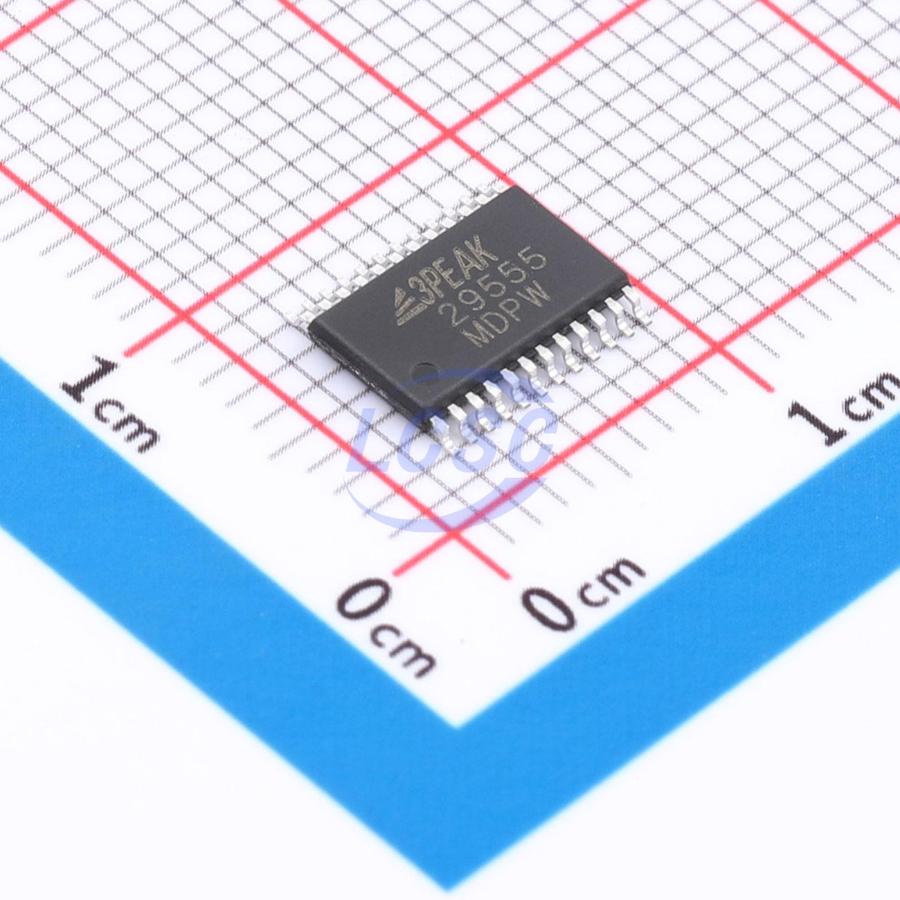

TPT29555-TS5R The 3PEAK TPT29555-TS5R is an I2C I/O expander featuring 16 I/O channels and a 400kHz clock frequency. It operates within a temperature range of -40℃ to +85℃.
Mfr Part #:

TPT29555-TS5R

Available from 2 distributors
Mfr Name: 3PEAK
3PEAK
The 3PEAK TPT29555-TS5R is an I2C I/O expander featuring 16 I/O channels and a 400kHz clock frequency. It operates within a temperature range of -40℃ to +85℃.
✓ Total Stock: 2,356 pcs

TPT29555-TS5R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,006 pcs
On Request
2006 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPT29555-TS5R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Features
Interface
Interrupt Output
Mounting Type
Number of I/O
Operating Temperature
Output Type
View Similar Products (0)

TPT29555-TS5R Description

Short technical summary and product information.

The 3PEAK TPT29555-TS5R is an I2C I/O expander designed for interface applications. It provides 16 input/output channels and operates with a clock frequency of 400kHz.



This device supports a supply voltage range of 1.65V to 5.5V and features a push-pull output type. The operating temperature range is from -40℃ to +85℃, making it suitable for various environmental conditions. Key features include reset functionality, cascading, and address extension capabilities.



The TPT29555-TS5R comes in a TSSOP-24 package and is designed for surface mount assembly. It offers an output low current (IOL) of 30mA and includes an interrupt output.



This I/O expander is a component within the Drivers, Receivers, Transceivers category, suitable for designs requiring expanded I/O capabilities via the I2C interface.

TPT29555-TS5R Quick Information

Product Type: I/O Expander
Series: TPT29555
Canonical Name: 3PEAK TPT29555-TS5R I2C I/O Expander
Subcategory: Interface

TPT29555-TS5R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPT29555-TS5R Features

  • 16 I/O channels available.
  • Operates at 400kHz clock frequency.
  • Wide operating voltage from 1.65V to 5.5V.
  • Supports reset, cascading, and address extension.
  • Interrupt output feature included.

TPT29555-TS5R Applications

  • Expands I/O capabilities via I2C.
  • Suitable for embedded system designs.
  • Used in interface control applications.
  • Facilitates address extension needs.

TPT29555-TS5R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TPT29555-TS5R?

The operating voltage range is 1.65 V to 5.5 V.

What is the operating temperature range of the TPT29555-TS5R?

The operating temperature range is -40°C to +85°C.

What package does the TPT29555-TS5R come in?

It comes in a TSSOP-24 package.

What interface does the TPT29555-TS5R use?

It uses an I2C interface.

How many I/O pins does the TPT29555-TS5R have?

It has 16 I/O pins.

What is the output current capability of the TPT29555-TS5R?

It can sink 30 mA per output.

Does the TPT29555-TS5R have an interrupt output?

Yes, it includes an interrupt output.
