| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 | |
| AEC-Q101 Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| ESD Rating (Air) | |
| ESD Rating (Contact) | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Peak Pulse Power (Typical @ 8/20 µs waveform) | |
| Power | |
| Power Line Protection | |
| Response Time | |
| Reverse Standoff Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Termination Style | |
| Type | |
| Unidirectional Channels | |
| Voltage |

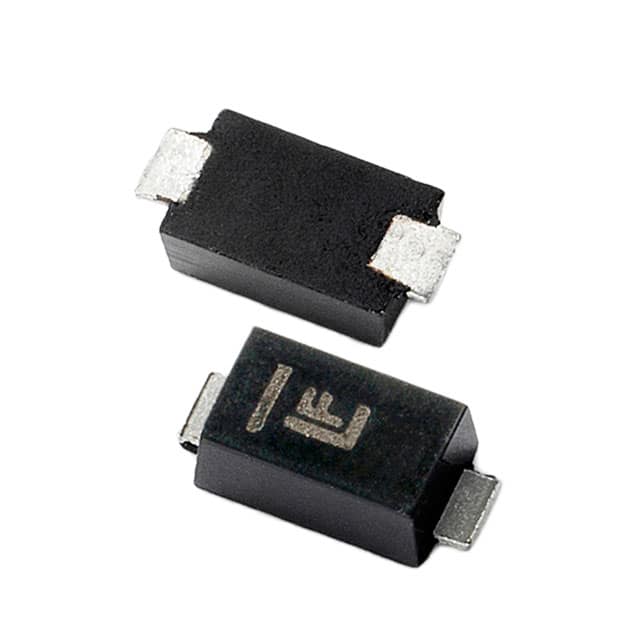

The TPSMF4L15A is a unidirectional TVS diode from Littelfuse Inc., designed to protect sensitive electronic equipment from voltage transients. It features a reverse standoff voltage of 15V and a clamping voltage of 24.4V at a peak pulse current of 16.4A (10/1000µs waveform). The device offers 400W peak pulse power dissipation under 10/1000µs conditions and 2000W under 8/20µs conditions.
This TVS diode is AEC-Q101 qualified for automotive applications and provides ESD protection up to 30kV (air and contact) per IEC 61000-4-2. It has a fast response time of less than 1.0ns from 0V to breakdown voltage minimum. The device is housed in a surface-mount SOD-123FL package with flat leads, suitable for automated assembly.
The TPSMF4L15A is ideal for protecting portable devices, hard drives, notebooks, VCC buses, POS terminals, SSDs, power supplies, monitors, and other vulnerable circuits in consumer and automotive electronics. It is halogen-free, RoHS3 compliant, and lead-free (Pb-free E3).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 10+ | $0.46 | $0.46 |
| 100+ | $0.29 | $0.29 |
| 500+ | $0.22 | $0.22 |
| 1,000+ | $0.20 | $0.20 |
| 3,000+ | $0.14 | $0.14 |
| 6,000+ | $0.13 | $0.13 |
| 9,000+ | $0.12 | $0.12 |
| 15,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 15V.
The clamping voltage is 24.4V.
The peak pulse current is 16.4A under a 10/1000µs waveform.
It comes in a surface-mount SOD-123FL package.
Yes, it is AEC-Q101 qualified for automotive applications.
It provides ESD protection of 30kV (air) and 30kV (contact) per IEC 61000-4-2.
The operating temperature range is -55°C to 150°C (junction temperature).
