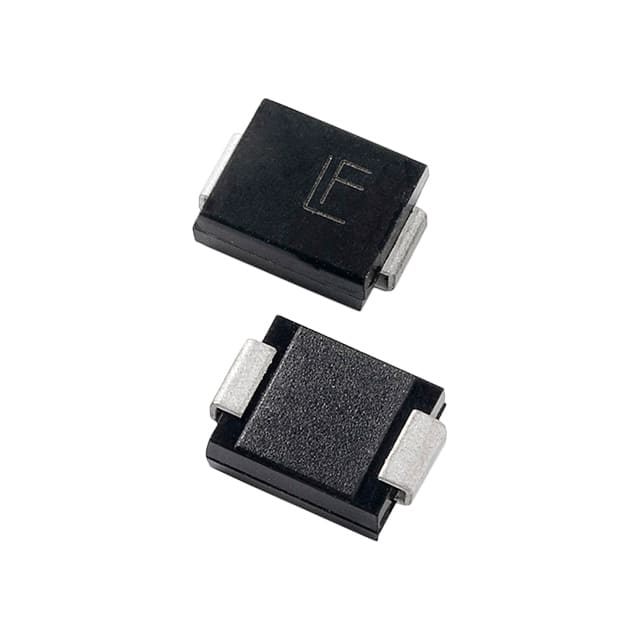

The TPSMC36A is a unidirectional TVS diode from Littelfuse, part of the TPSMC series. It is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient events. With a peak pulse power dissipation of 1500W (10/1000µs waveform), it provides robust clamping at 49.9V and can handle peak pulse currents up to 30.5A. The device features an ultra-fast response time of less than 1.0ps from 0V to VBR min, making it suitable for high-speed data lines.
This diode is AEC-Q101 qualified for automotive applications and meets IEC 61000-4-2 ESD protection of 30kV (air and contact). It is also compliant with IEC 61000-4-4 for EFT protection. The TPSMC36A is housed in a surface-mount DO-214AB (SMC) package, which is low-profile and optimized for board space. The package is rated for MSL Level 1 with high temperature soldering guaranteed at 260°C/10 seconds.
Typical applications include protection of I/O interfaces, VCC bus, telecom, computer, industrial, and consumer electronics. The device is RoHS compliant, halogen free, and has a matte tin lead-free plating. Operating temperature range is -65°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.36 | $0.36 |
| 3,000+ | $0.27 | $0.27 |
| 6,000+ | $0.27 | $0.27 |
| 9,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clamping voltage is 49.9V.
The peak pulse current is 30.5A (test condition not specified).
The package is DO-214AB (SMC) surface mount.
It provides 30kV ESD protection for both air and contact discharge per IEC 61000-4-2.
The typical response time is less than 1.0ps from 0V to VBR min.
The operating junction temperature range is -65°C to 150°C.
Yes, it is AEC-Q101 qualified for automotive applications.
