| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Power | |
| Power Line Protection | |
| Response Time | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The TPSMB130A is a 600W peak pulse power transient voltage suppression (TVS) diode from Littelfuse, part of the TPSMB series. It is AEC-Q101 qualified for automotive applications and designed for surface mount assembly.
Electrical characteristics include a reverse standoff voltage of 111V, a clamping voltage of 179V, and a peak pulse current of 3.4A under a 10/1000µs waveform. The device has a typical response time of less than 1.0 ns and offers unidirectional protection with one channel.

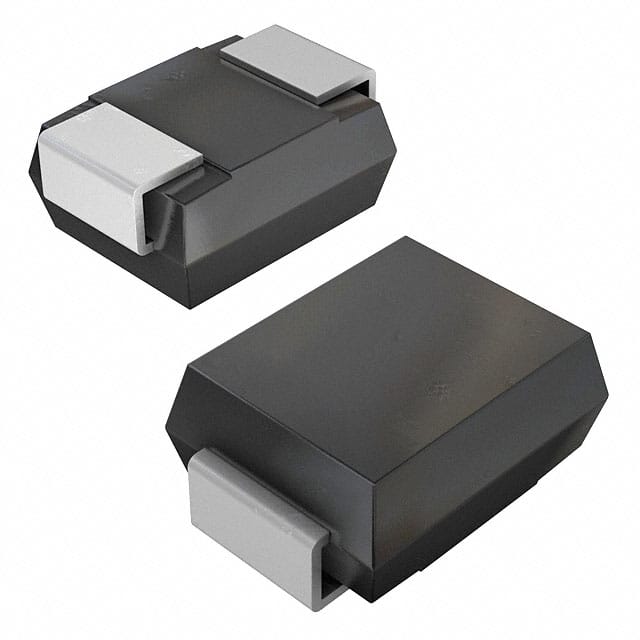

The component is housed in a DO-214AA (SMB) surface mount package and operates over a junction temperature range of -65°C to 150°C. It is RoHS compliant, halogen-free, and meets MSL Level 1.
Typical applications include protection of I/O interfaces, VCC bus, and on-board charging circuits per the datasheet. The device also provides ESD protection per IEC 61000-4-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
| 10+ | $0.53 | $0.53 |
| 100+ | $0.40 | $0.40 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.26 | $0.26 |
| 6,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
111V.
179V.
3.4A at 10/1000µs waveform.
DO-214AA (SMB) surface mount package.
Typically less than 1.0 ns from 0V to VBR min.
-65°C to 150°C (junction).
Yes, it is AEC-Q101 qualified.
