| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,505 pcs
|
1505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

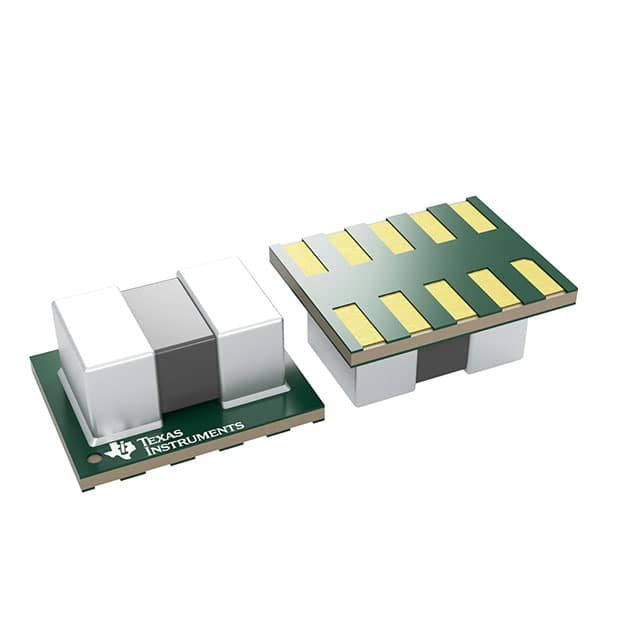

The TPSM828212SILR is a non-isolated power-over-line (PoL) step-down DC/DC converter module from Texas Instruments, designed for high-density power supply applications. It delivers up to 1A output current from a 2.4V to 5.5V input voltage range, achieving up to 95% efficiency. The device integrates all required power components in a compact 10-TFDFN package (2.5mm x 2.0mm x 1.1mm), enabling minimal external components. Features include remote on/off control. Operating temperature range is -40°C to 125°C, suitable for commercial ITE equipment. The surface-mount package simplifies PCB assembly and reduces board space.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.98 | $2.98 |
| 10+ | $2.23 | $2.23 |
| 25+ | $2.04 | $2.04 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.70 | $1.70 |
| 500+ | $1.67 | $1.67 |
| 1,000+ | $1.62 | $1.62 |
| 3,000+ | $1.51 | $1.51 |
| 6,000+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 125°C.
10-TFDFN Module (2.5mm x 2.0mm x 1.1mm) with supplier package 10-uSIP (2.5x2).
Minimum input voltage is 2.4V.
RoHS3 compliant status is indicated but not verified.
1A.
95% typical efficiency.
Yes, features Remote On/Off.
