| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,229 pcs
|
8229 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,121 pcs
|
3121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Mode | |
| Current | |
| Duty Cycle (Max) | |
| Features | |
| Height | |
| Input Voltage (Minimum/Maximum) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current Max | |
| Output Voltage (Minimum/Maximum) | |
| Supplier Device Package | |
| Switching Frequency (Minimum/Maximum) | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

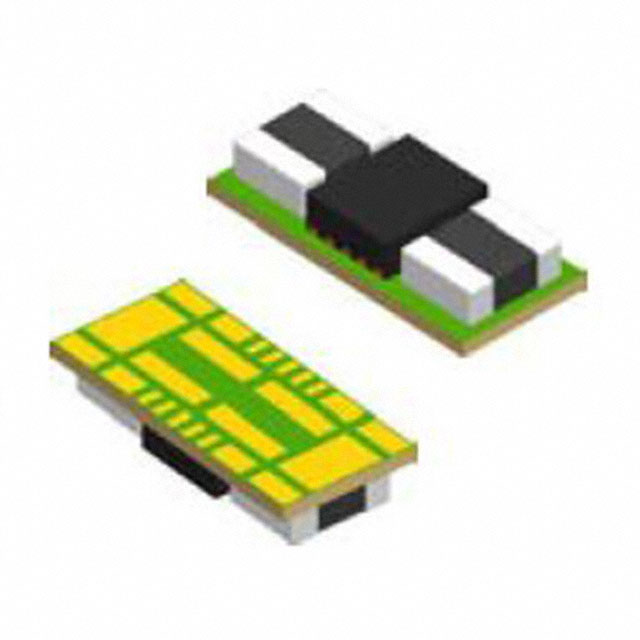

The TPSM82480MOPR is a Non-Isolated Point-of-Load (PoL) module from Texas Instruments featuring a synchronous buck topology with integrated inductor. It delivers up to 6A continuous output current with no derating up to 85°C ambient. The input voltage range is 2.4V to 5.5V, and the output voltage is adjustable from 0.6V to 5.5V.
This module operates at a fixed switching frequency between 2000kHz and 3000kHz using current mode control for fast transient response. Key features include overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and undervoltage lockout (UVLO). Additional capabilities such as enable control, power good indicator, output discharge, voltage selection (VSEL), and tracking make it suitable for complex power sequencing requirements. It supports multiphase operation and phase interleaving for higher current applications.
The device is housed in a compact 24-SMD Module (24-QFM) measuring 7.9mm x 3.6mm x 1.6mm, designed for surface mount assembly. The operating temperature range spans -40°C to 125°C, covering industrial and commercial environments. It is CISPR11 Class B compliant for EMI performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.97 | $6.97 |
| 10+ | $5.34 | $5.34 |
| 25+ | $4.94 | $4.94 |
| 100+ | $4.49 | $4.49 |
| 250+ | $4.28 | $4.28 |
| 500+ | $4.15 | $4.15 |
| 1,000+ | $4.10 | $4.10 |
| 3,000+ | $4.10 | $4.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.4V to 5.5V.
0.6V to 5.5V adjustable.
6A.
-40°C to 125°C.
24-SMD Module (24-QFM) measuring 7.9mm x 3.6mm x 1.6mm.
Yes, RoHS3 Compliant (unverified).
2000kHz to 3000kHz.
