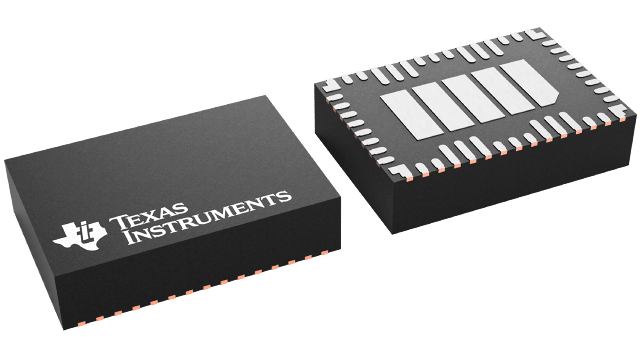

The Texas Instruments TPSM5D1806RDBR is a non-isolated DC DC power module designed for ITE (Commercial) applications. It accepts an input voltage range of 4.5 V to 15 V and can deliver up to 12 A of output current.
This module operates with a Synchronous Buck topology and features a switching frequency between 500 kHz and 2000 kHz. The output voltage is adjustable from 0.5 V to 5.5 V, with a voltage reference accuracy of ±1% for the 0.5-V setting over the temperature range. Key features include EMI testing, enable functionality, frequency synchronization, overcurrent protection, phase interleaving, power good indication, and remote sense capability.
The TPSM5d1806RDBR is housed in a 51-PowerFQFN module package, designed for surface mounting. Its dimensions are 8.0 mm x 5.5 mm x 1.9 mm. The operating temperature range is -40°C to 125°C, making it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.20 | $13.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 15V.
The output current is 12A.
The switching frequency is adjustable from 500kHz to 2000kHz.
The operating temperature range is -40°C to 125°C.
It comes in a 51-PowerFQFN module (51-BQFN 8x5.5) for surface mount.
It uses advanced current mode (ACM) control.
The output voltage is adjustable from 0.5V to 5.5V.
