| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,279 pcs
|
6279 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

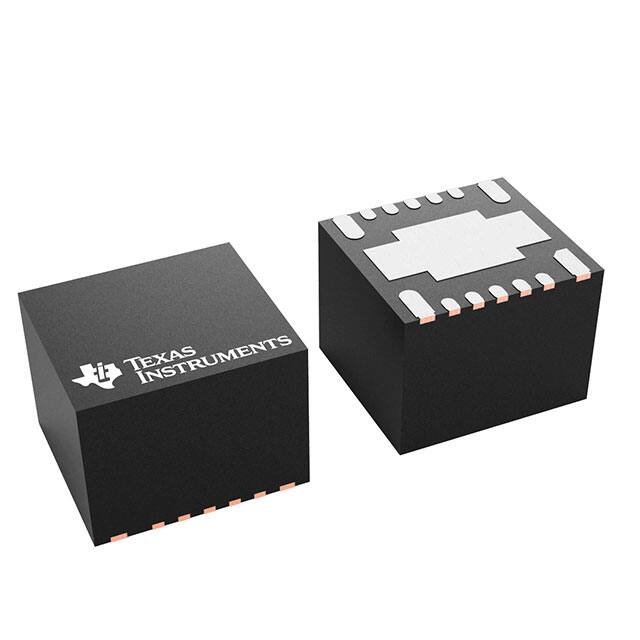

The Texas Instruments TPSM560R6RDAR is a non-isolated Point-of-Load (PoL) module designed for DC to DC conversion. It accepts an input voltage range from 4.2V up to 60V and provides an adjustable output voltage.
This converter is capable of delivering up to 600mA of output current with a power rating of 3.6W. It boasts an efficiency of 86%, making it suitable for various power supply applications. Key features include adjustable output and a standby output function.
The TPSM560R6RDAR is designed for surface mount installation and comes in a 15-PowerBQFN module package. Its operating temperature range is from -40°C to 125°C, ensuring reliable performance in demanding environments. The compact dimensions of 5.0mm x 5.5mm x 4.1mm make it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.2V to 60V.
Adjustable from 1V to 6V.
600mA.
86%.
-40°C to 125°C.
15-PowerBQFN Module (15-B3QFN 5x5.5mm).
Surface Mount.
