| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Current | |
| Frequency | |
| Main Purpose | |
| Output Voltage Range | |
| Outputs and Type | |
| Regulator Topology | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

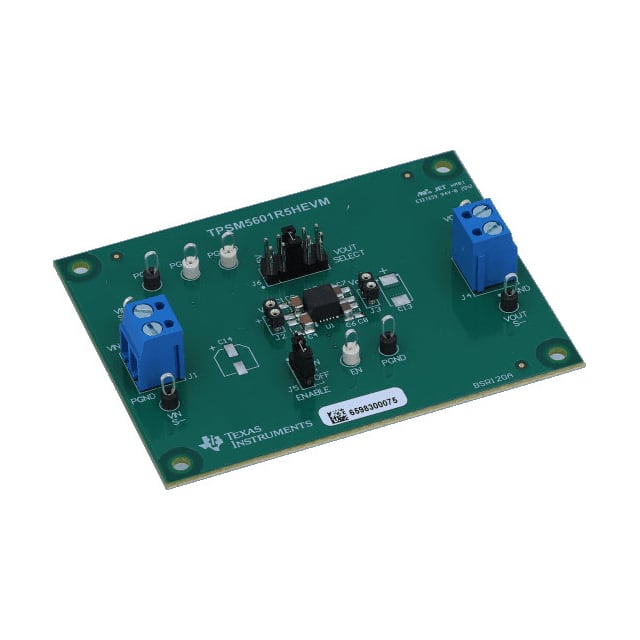

The TPSM5601R5HEVM evaluation module (EVM) is designed to evaluate the operation of the Texas Instruments TPSM5601R5H power module. This fully populated board simplifies testing and prototyping of wide-input-voltage step-down designs.
Key electrical specifications include a 4.2V to 60V input voltage range, an adjustable output voltage from 1V to 16V, and continuous output current up to 1.5A. The switching frequency is fixed at 1MHz, enabling compact external component selection.
The board utilizes the TPSM5601R5H power module, which integrates the inductor in a 5mm x 5.5mm enhanced HotRod QFN package. The single non-isolated output allows straightforward evaluation of buck regulator performance in various scenarios.
| Qty | Low | High |
|---|---|---|
| 1+ | $64.68 | $64.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.2V to 60V
1V to 16V
1.5A
1MHz
TPSM5601R5H power module
RoHS3 Compliant
5mm x 5.5mm QFN enhanced HotRod package
