| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,196 pcs
|
3196 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

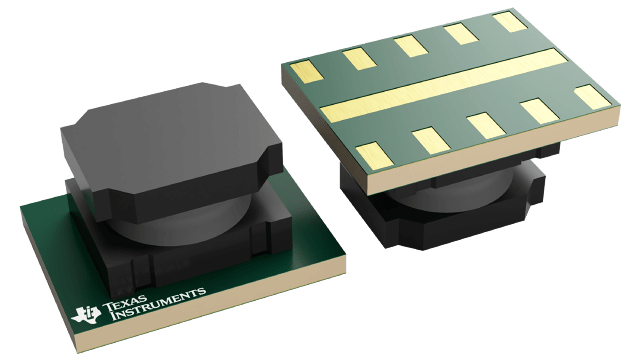

The TPSM265R1SILR is a non-isolated point-of-load (PoL) module from Texas Instruments designed for applications requiring a compact power solution with a wide input voltage range of 3V to 65V. It delivers a regulated output current of 100mA and features an adjustable output voltage for flexibility. The module is housed in a 10-LDFN exposed pad surface mount package (10-uSIP) measuring 3.8mm x 3.0mm x 1.6mm, suitable for space-constrained designs. It operates over a temperature range of -40°C to 125°C, making it suitable for harsh environments. The adjustable output feature allows designers to set the output voltage with external resistors, enabling use in various low-power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.06 | $5.06 |
| 10+ | $3.85 | $3.85 |
| 25+ | $3.55 | $3.55 |
| 100+ | $3.17 | $3.17 |
| 250+ | $3.02 | $3.02 |
| 500+ | $2.97 | $2.97 |
| 1,000+ | $2.95 | $2.95 |
| 3,000+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 3V to 65V.
It is available in a 10-LDFN Exposed Pad, Module package (supplier device package 10-uSIP with dimensions 3.8mm x 3.0mm).
The operating temperature range is -40°C to 125°C.
It is listed as RoHS3 compliant, but this information is unverified and should be confirmed with the manufacturer.
The output current is 100mA.
Surface Mount.
It has a single output.
