TPS84A20RVQT The Texas Instruments TPS84A20RVQT is a 10A synchronous buck DC/DC switching regulator. It offers an adjustable output voltage and a wide input voltage range.
Mfr Part #:

TPS84A20RVQT

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS84A20RVQT is a 10A synchronous buck DC/DC switching regulator. It offers an adjustable output voltage and a wide input voltage range.
✓ Total Stock: 10,934 pcs
$ Price Range: $11.44

TPS84A20RVQT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
8,932 pcs
On Request
8932 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,002 pcs
On Request
2002 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS84A20RVQT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Efficiency
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Output Voltage
Supplier Device Package
Supplier Package
Synchronous Rectifier
Thermal Resistance
Topology
Voltage
View Similar Products (0)

TPS84A20RVQT Description

Short technical summary and product information.

The Texas Instruments TPS84A20RVQT is an integrated power solution designed for DC/DC conversion. This synchronous buck regulator can deliver up to 10A of current with an adjustable output voltage ranging from 0.6V to 5.5V.



It operates with an input voltage range of 2.95V to 17V and features an adjustable switching frequency between 200kHz and 1.2MHz. The device boasts efficiencies of up to 95% and includes features like adjustable slow-start, power-good output, and overcurrent protection.

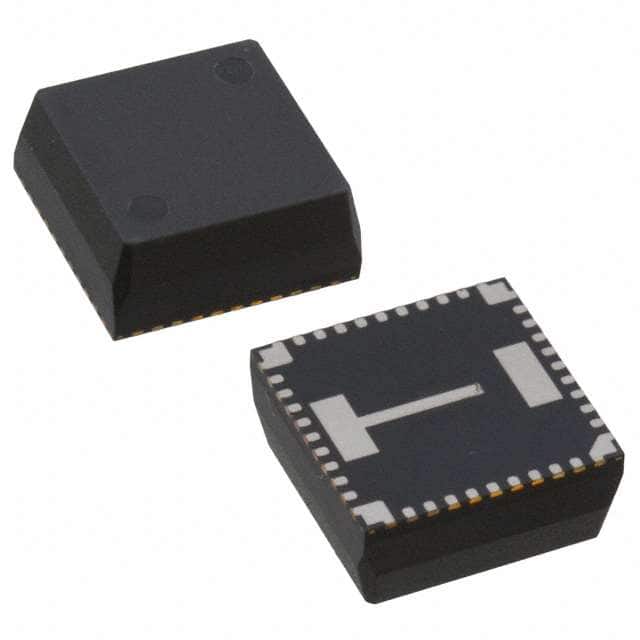

Packaged in a 42-B3QFN module, the TPS84A20RVQT is designed for surface mount applications. Its compact 10mm x 10mm x 4.3mm package and enhanced thermal performance make it suitable for space-constrained designs.

TPS84A20RVQT Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: Texas Instruments TPS84A20RVQT Synchronous Buck Converter
Subcategory: Power Modules

TPS84A20RVQT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS84A20RVQT Estimated Pricing

Qty Low High
1+ $11.44 $11.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS84A20RVQT Features

  • Easy-to-use integrated power solution.
  • 10A output current capability.
  • Wide output voltage adjust range.
  • High efficiency up to 95%.
  • Compact 10mm x 10mm x 4.3mm package.

TPS84A20RVQT Applications

  • Suitable for low-profile designs.
  • Supports parallel operation for higher current.
  • Adjustable switching frequency for design flexibility.
  • Includes overcurrent and overtemperature protection.

TPS84A20RVQT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS84A20RVQT?

2.95V to 17V.

What is the output voltage range?

0.6V to 5.5V adjustable.

What is the maximum output current?

10A.

What is the efficiency?

Up to 95%.

What is the switching frequency range?

200kHz to 1.2MHz adjustable.

What is the operating temperature range?

-40°C to 85°C.

What package is the device available in?

42-BQFN Module (42-B3QFN 10x10).
