| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,477 pcs
|
1477 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |

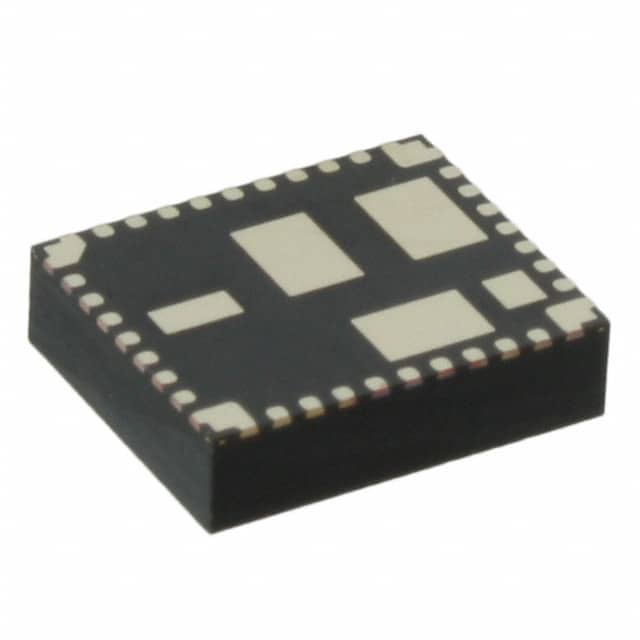

The TPS84250RKGT is an integrated power solution from Texas Instruments that combines a 2.5A DC/DC converter with inductor and passives into a low-profile 41-BQFN module (11 mm × 9 mm × 2.8 mm). It accepts a wide input voltage from 7 V to 50 V and provides an adjustable output from 2.5 V to 15 V, with efficiencies up to 96%. The switching frequency is programmable from 300 kHz to 1 MHz and can be synchronized to an external clock.
Key features include adjustable soft start, output voltage sequencing and tracking, power-good output, programmable UVLO, output overcurrent protection (OCP), overtemperature protection (OTP), and prebias output start-up. The module operates over a -40°C to +85°C temperature range and is surface-mountable, making it suitable for space-constrained applications.
Typical applications include industrial and motor controls, automated test equipment, medical and imaging equipment, and high-density power systems. The device meets EN55022 Class B emissions standards and requires only five external components for operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.78 | $19.78 |
| 10+ | $19.46 | $19.46 |
| 25+ | $18.74 | $18.74 |
| 100+ | $17.98 | $17.98 |
| 250+ | $17.42 | $17.42 |
| 500+ | $17.07 | $17.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 7 V to 50 V.
The output voltage is adjustable from 2.5 V to 15 V.
The module can deliver up to 2.5 A output current.
It comes in a 41-BQFN module (Supplier Device Package: 41-B1QFN) measuring 11.0 mm x 9.0 mm x 2.8 mm.
The operating temperature range is -40°C to +85°C.
It is listed as RoHS3 Compliant, though the compliance status is unverified.
The module includes Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO).
