| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Efficiency | |
| Features | |
| Frequency | |
| Function | |
| Halogen Free | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

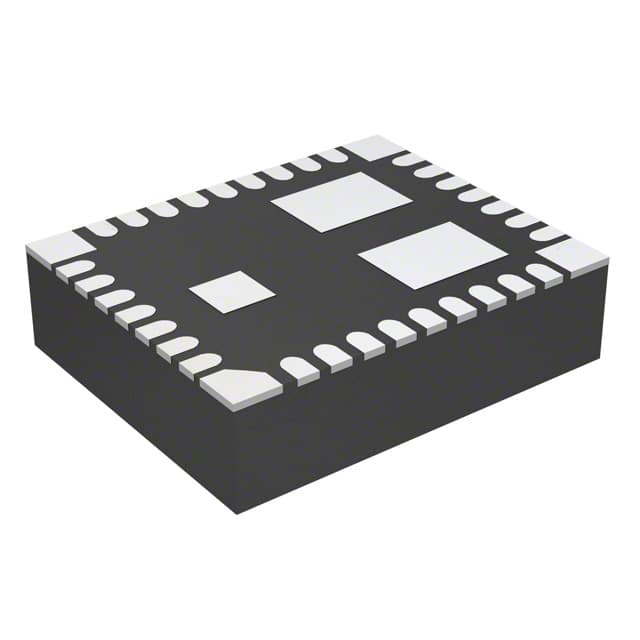

The TPS84210RKGT from Texas Instruments is an integrated power solution designed for DC/DC conversion. This synchronous buck converter module is capable of delivering up to 2A of output current.
It features a wide input voltage range of 2.95V to 6V and an adjustable output voltage that can be set from 0.8V to 3.6V with ±1% reference accuracy. The switching frequency is adjustable from 500kHz to 2MHz, allowing for design flexibility and optimization.
Key features include EMI testing, enable functionality, frequency synchronization, power good indication, remote sense capability, and tracking. The module is housed in a 39-B1QFN package suitable for surface mounting, enabling a small footprint and low-profile design. Efficiencies can reach up to 96%.
This component is suitable for applications requiring efficient and compact power conversion. Its adjustable features and integrated design simplify board layout and reduce component count.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.95V to 6V.
The output voltage is adjustable from 0.8V to 3.6V.
The maximum output current is 2A.
The operating temperature range is -40°C to 85°C.
The package is 39-BQFN Exposed Pad (39-B1QFN 11x9).
The switching frequency range is 400kHz to 2000kHz.
The maximum efficiency is up to 96%.
