TPS8268180SIPR
Texas Instruments
The TPS8268180SIPR is a non-isolated PoL module from Texas Instruments. It provides a regulated 1.8V output at up to 1.6A with 90% typical efficiency.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,829 pcs
|
25829 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | 1736 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The TPS8268120SIPT from Texas Instruments is a Non-Isolated Point-of-Load (PoL) Module designed for commercial ITE applications. It delivers a regulated 1.2V output from an input voltage as low as 2.5V, with a maximum output current of 1.6A. The module achieves a typical efficiency of 90%, making it suitable for power-sensitive designs.
The module includes a range of protection and control features such as remote on/off capability, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). It operates over a temperature range of -40°C to 85°C, ensuring reliable performance in various environments.

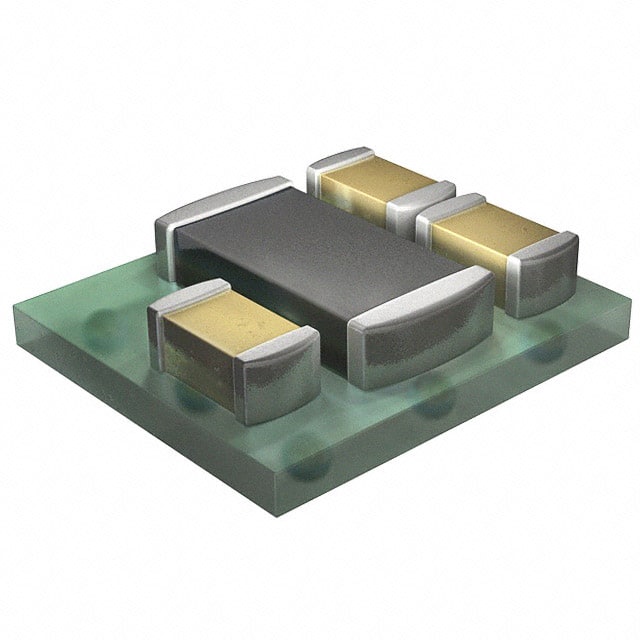

The TPS8268120SIPT is housed in a compact 9-SMD Module package (9-USIP supplier device package) with dimensions of 2.9mm x 2.3mm x 1.0mm. It is surface mountable, making it ideal for space-constrained designs. The module is RoHS3 compliant and has an MSL rating of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.53 | $3.53 |
| 5+ | $3.41 | $3.41 |
| 10+ | $3.11 | $3.11 |
| 25+ | $3.10 | $3.10 |
| 100+ | $2.81 | $2.81 |
| 250+ | $2.68 | $2.68 |
| 500+ | $2.48 | $2.48 |
| 1,000+ | $2.43 | $2.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum input voltage is 2.5V and the output voltage is 1.2V.
The maximum output current is 1.6A.
The typical efficiency is 90%.
The operating temperature range is -40°C to 85°C.
The package is a 9-SMD Module (9-USIP supplier device package).
Yes, it is RoHS3 compliant.
It includes remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
