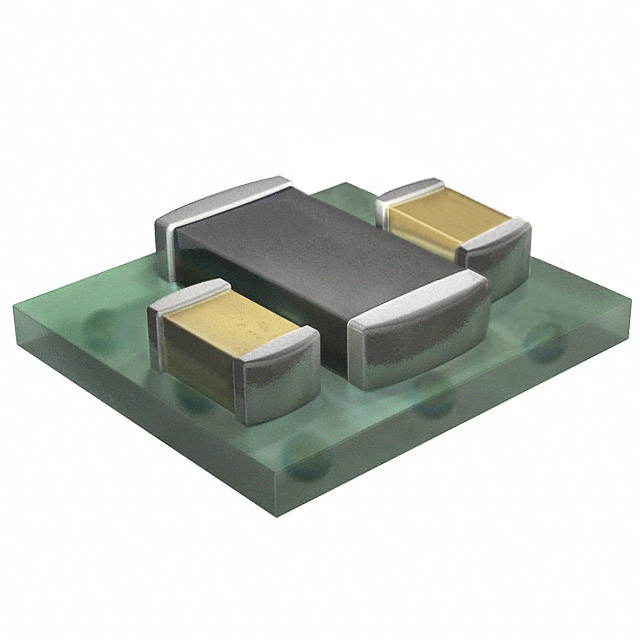

TPS82677SIPR The Texas Instruments TPS82677SIPR is a Non-Isolated PoL Module DC DC Converter. It offers a 1.2V output voltage and a maximum output current of 600mA.
Mfr Part #:

TPS82677SIPR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS82677SIPR is a Non-Isolated PoL Module DC DC Converter. It offers a 1.2V output voltage and a maximum output current of 600mA.
✓ Total Stock: 6,252 pcs
$ Price Range: $2.70

TPS82677SIPR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,252 pcs
On Request
6252 pcs On Request 1 On Request On Request 13 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS82677SIPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Supplier Device Package
Type
Voltage
Width
View Similar Products (0)

TPS82677SIPR Description

Short technical summary and product information.

The Texas Instruments TPS82677SIPR is a Non-Isolated PoL Module DC DC Converter designed for ITE (Commercial) applications. It features a single output of 1.2V with a maximum current capability of 600mA. The input voltage range is from 2.3V to 4.8V, and it boasts an efficiency of 90%.



This converter includes essential features such as Remote On/Off, OCP (Over Current Protection), OTP (Over Temperature Protection), and UVLO (Under Voltage Lockout). The control features include Enable with Active High logic. It operates within a temperature range of -40°C to 85°C.



The TPS82677SIPR is housed in an 8-SMD Module package and is designed for surface mounting. Its dimensions are 3.0mm in length, 2.4mm in width, and 1.0mm in height. The supplier device package is an 8-uSIP (2.9x2.3).

TPS82677SIPR Quick Information

Product Type: DC DC Converter
Series: MicroSip™
Canonical Name: TPS82677SIPR Non-Isolated PoL Module DC DC Converter
Subcategory: Non-Isolated PoL Module

TPS82677SIPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS82677SIPR Estimated Pricing

Qty Low High
1+ $2.70 $2.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS82677SIPR Features

  • Non-Isolated PoL Module DC DC Converter.
  • 1.2V output voltage at 600mA.
  • Wide input voltage range: 2.3V to 4.8V.
  • High efficiency of 90%.
  • Compact 8-SMD Module package.

TPS82677SIPR Applications

  • Designed for commercial ITE equipment.
  • Used in point-of-load power conversion.
  • Suitable for 1.2V low-voltage rails.
  • Fits compact surface-mount PCB layouts.

TPS82677SIPR FAQs

6 frequently asked questions generated from this part’s specifications.
What output voltage and current does the TPS82677SIPR provide?

It provides a single 1.2V output rated at 600mA.

What input voltage range does the TPS82677SIPR support?

The input voltage range is 2.3V to 4.8V.

What is the operating temperature range of the TPS82677SIPR?

-40°C to 85°C.

What package and mounting type does the TPS82677SIPR use?

8-SMD module, surface mount.

What is the typical efficiency of the TPS82677SIPR?

Typical efficiency is 90%.

What protection and control features does the TPS82677SIPR include?

Remote on/off, active-high enable, OCP, OTP, and UVLO.
