| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,750 pcs
|
15750 pcs | On Request | 1 | On Request | On Request | 13+15 | On Request | On Request | |
|
294 pcs
|
294 pcs | On Request | 1 | On Request | On Request | 1240+ | On Request | On Request | |
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Maximum Output Power | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

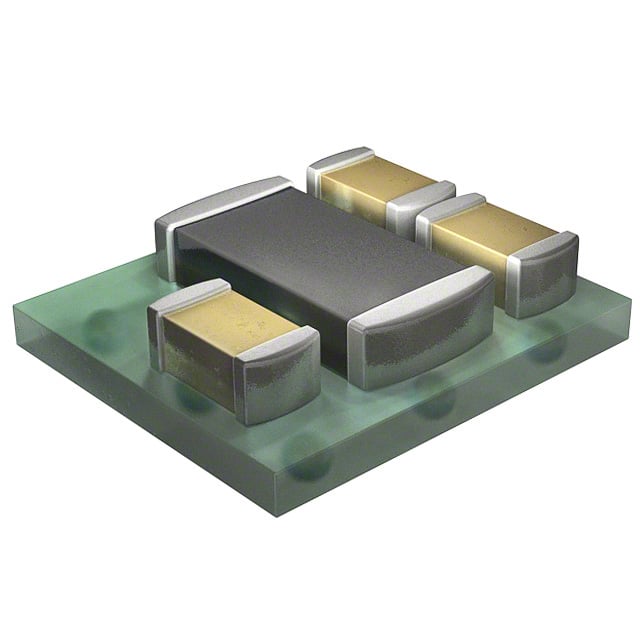

The TPS82674SIPT is a non-isolated Point-of-Load (PoL) DC/DC converter from Texas Instruments. It provides a regulated 1.2V output with a maximum output current of 600mA, delivering up to 0.72W of power. The module achieves up to 90% efficiency, making it suitable for power-sensitive applications.
This converter operates from a 2.3V input voltage and includes control features such as enable (active high) and remote on/off. Protection features include overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The device is designed for commercial ITE (Information Technology Equipment) applications.
The TPS82674SIPT is housed in a compact 8-SMD module with a supplier device package of 8-uSIP (2.9x2.3). The physical dimensions are 3.0mm x 2.4mm x 1.0mm. It is surface mountable, making it suitable for space-constrained designs. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.66 | $2.66 |
| 5+ | $2.62 | $2.62 |
| 10+ | $2.30 | $2.30 |
| 25+ | $2.26 | $2.26 |
| 50+ | $2.22 | $2.22 |
| 100+ | $2.18 | $2.18 |
| 250+ | $2.13 | $2.13 |
| 500+ | $1.95 | $1.95 |
| 1,000+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.2V
600mA
2.3V
90%
-40°C to 85°C
8-SMD Module (8-uSIP 2.9x2.3)
RoHS3 Compliant (unverified)
